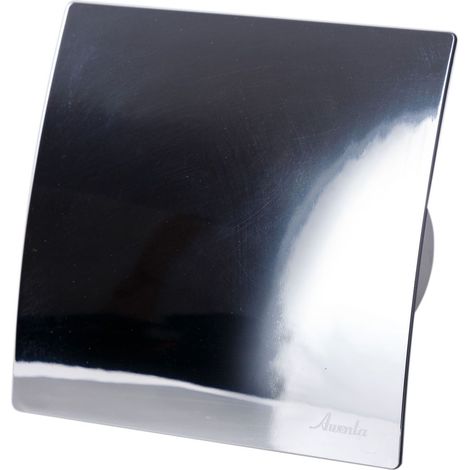

Extractor fan System Silent Escudo Chrome 100 M

(£98.79/pc)

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by creoven

Product information

Description

General description

The Extractor Fan System Silent Escudo Chrome 100 M is designed for efficient ventilation with a sleek chrome front panel. It features a motion sensor that activates the fan upon detecting movement and an adjustable shut-off timer for convenience.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Nominal size: 100 mm

Speed levels: 1

Wattage: 5 W

Revolutions per minute: 1900

Max. airflow rate: 75 m³/h

Sound pressure level Lp-3m: 26 dB(A)

Total pressure Pmax.: 26 Pa

IP rating: IPX4

Max. ambient temperature: +40°C

Diameter pipe connection: 100 mm

Front cover dimensions: 160 x 160 x 30 mm

Total depth: 118 mm

Weight: 0.7 kg

Installation

Mounting options: wall or ceiling

Application: direct connection to the ventilation shaft

Features

Brand
AWENTA
Colour
Silver-coloured
Power
5 W
Power source
Corded
With integrated lighting
No
With timer
Yes
Max. flow rate
75 m³/h
Intended use
Indoor
Diameter
10 cm
Wall mounting possible
Yes
Fan functions
Timer Function
Height
3 cm
IP rating
IPX4
Fan blade material
Acrylonitrile butadiene styrene (ABS)
Material
Acrylonitrile butadiene styrene (ABS)
Operating Mode
Electric
Weight
0.7 kg
Depth
11.8 cm
Noise level
26 dB
Control
Manual control
Fan type
Ceiling fan
ManoMano Reference
ME51308469
MMID
524302444193
Product code
KWS100MPEH
EAN
0745203005963
