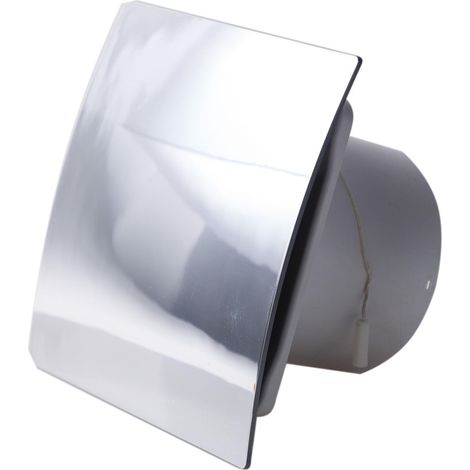

Extractor fan System Turbo Escudo Chrome 100

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by creoven

Product information

Description

General description

The Extractor fan System Turbo Escudo Chrome 100 is designed for efficient ventilation in various settings. With a sleek chrome front panel, it combines functionality with modern aesthetics.

Technical specifications

Operating voltage: 220-240 V ~ 50 Hz

Front panel colour: chrome

Front panel material: ABS plastic

Nominal size: 100 mm

Speed levels: 1

Wattage: 13 W

Revolutions per minute: 2400

Max. airflow rate: 110 m³/h

Sound pressure level Lp-3m: 36 dB(A)

Total pressure Pmax.: 40 Pa

IP rating: IPX4

Max. ambient temperature: +40°C

Diameter pipe connection: 100 mm

Front cover dimensions: 160 x 160 x 30 mm

Total depth: 118 mm

Weight: 0.7 kg

Installation

Mounting options: wall, ceiling

Application: direct connection to the ventilation shaft

On/off control via light switch (to be provided on-site)

Features

Brand
AWENTA
Shape
Square
IP rating
IPX4
Material
Plastic
Air flow
110 m³/h
With timer
No
Integrated non-return valve
No
Presence detector
No
Silent model
No
Weight
700 g
For bathroom
No
Depth
11.8 cm
Power
13 W
Noise level
36 dB
Pcs per pack
1
Ball bearings
No
Type of lawn aerator
Classic
Type of installation method
For mounting
ManoMano Reference
ME54450470
MMID
104223036120
Product code
KWT100PEH
EAN
0745203007011
