Eye Grab Hook Grade 100 16MM (G100 10 Ton Lifting Chain Sling Shortening Clutch)

Name: Eye Grab Hook Grade 100 16MM (G100 10 Ton Lifting Chain Sling Shortening Clutch)
Brand: SECUREFIX DIRECT
SKU: SFG10EGH16
Price: 30 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

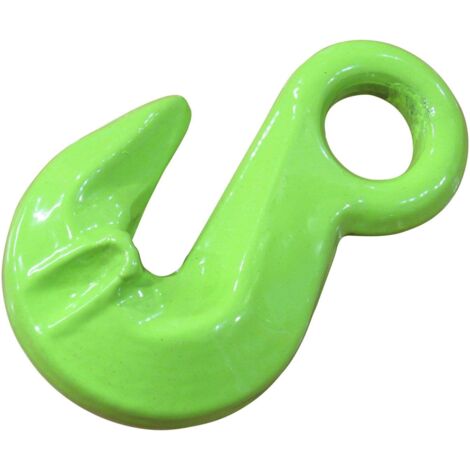

Eye Grab Hook Grade 100 16MM is a high-quality lifting accessory designed for use in the lifting gear industry, particularly with chain slings. This hook allows for the shortening of chains to meet specific lifting requirements, providing versatility and efficiency in various lifting applications.

Technical specifications

Material: Grade 100

Chain Size: 16MM

Finish: Light Green (Colour May Vary)

Factor of Safety: 4:1

Conforms to: ASTM A952

Product Codes and Specifications:

Product Code: SFG10EGH06 - SWL: 1.5 Tonne, A: 13.5 MM, B: 46 MM, C: 73 MM, D: 7.5 MM, E: 9 MM, F: 22 MM

Product Code: SFG10EGH08 - SWL: 2.5 Tonne, A: 18 MM, B: 62 MM, C: 93 MM, D: 11 MM, E: 9 MM, F: 29 MM

Product Code: SFG10EGH10 - SWL: 4 Tonne, A: 21 MM, B: 82 MM, C: 126 MM, D: 12.8 MM, E: 15 MM, F: 42.5 MM

Product Code: SFG10EGH13 - SWL: 6.7 Tonne, A: 27.5 MM, B: 105.5 MM, C: 160 MM, D: 17 MM, E: 17 MM, F: 52 MM

Product Code: SFG10EGH16 - SWL: 10 Tonne, A: 30 MM, B: 107 MM, C: 168 MM, D: 21 MM, E: 21 MM, F: 70 MM

Usage

This Eye Grab Hook is primarily used in conjunction with chain slings to facilitate lifting operations. By attaching a chain to the grab hook, users can effectively shorten the chain to suit their specific lifting needs, enhancing the overall lifting process.

Other information

*Test Certificate Will Be Supplied Via Email*

Features

Brand
SECUREFIX DIRECT
Colour
Light green
Warranty
1 year(s)
Pcs per pack
1
Maximum load
10000 kg
