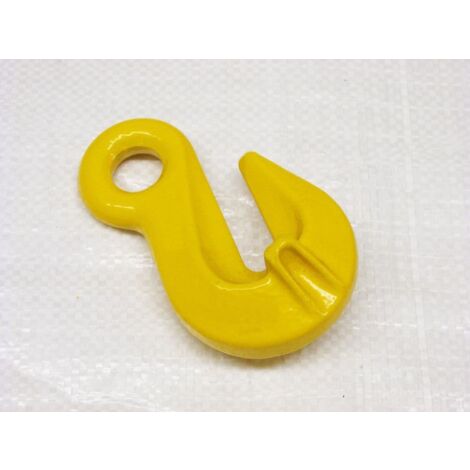

Eye Grab Hook Grade 80 26MM (G80 21.2 Ton Lifting Chain Sling Shortening Clutch)

Name: Eye Grab Hook Grade 80 26MM (G80 21.2 Ton Lifting Chain Sling Shortening Clutch)
Brand: SECUREFIX DIRECT
SKU: SFYASEGH26
Price: 85.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Eye Grab Hook Grade 80 is designed for heavy-duty lifting applications, specifically suited for use with 26MM chain sizes. Made from high-quality Grade 80 material, these hooks are essential components in the lifting gear industry, primarily used in conjunction with chain slings to facilitate safe and efficient lifting operations.

Technical specifications

Material: Grade 80 (G80)

Finish: Yellow (may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Available Product Codes and Specifications:

SFYASEGH07: SWL 2 Tonne, A 17.5 MM, B 60 MM, C 92 MM, D 10 MM, E 11 MM, F 31.5 MM

SFYASEGH10: SWL 3.15 Tonne, A 19.5 MM, B 77 MM, C 120 MM, D 12.5 MM, E 13.5 MM, F 45 MM

SFYASEGH13: SWL 5.3 Tonne, A 25 MM, B 97 MM, C 160 MM, D 15 MM, E 16.5 MM, F 60 MM

SFYASEGH16: SWL 8 Tonne, A 29 MM, B 105 MM, C 165 MM, D 18 MM, E 20 MM, F 70 MM

SFYASEGH20: SWL 12.5 Tonne, A 37.5 MM, B 140 MM, C 215 MM, D 23 MM, E 24 MM, F 80 MM

SFYASEGH22: SWL 15 Tonne, A 42.5 MM, B 160 MM, C 255 MM, D 27 MM, E 27 MM, F 95 MM

SFYASEGH26: SWL 21.2 Tonne, A 44.5 MM, B 180 MM, C 300 MM, D 27.5 MM, E 35 MM, F 100 MM

SFYASEGH32: SWL 31.5 Tonne, A 55 MM, B 227 MM, C 365 MM, D 34 MM, E 43 MM, F 123 MM

Usage

These grab hooks are primarily used in the lifting gear industry for chain slings. By attaching a chain to the grab hook, users can effectively shorten the chain to meet specific lifting requirements.

Other information

*Test Certificate will be supplied via email.*
*Please note we supply a huge variety of lifting gear.*

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Warranty
1 year(s)
Pcs per pack
1
Maximum load
165 kg
Height
22.7 cm
Width
3.75 cm
Material
Two-material
Weight
100 g
ManoMano Reference
ME27139654
MMID
573008520171
Product code
SFYASEGH26
EAN
0600988486058
