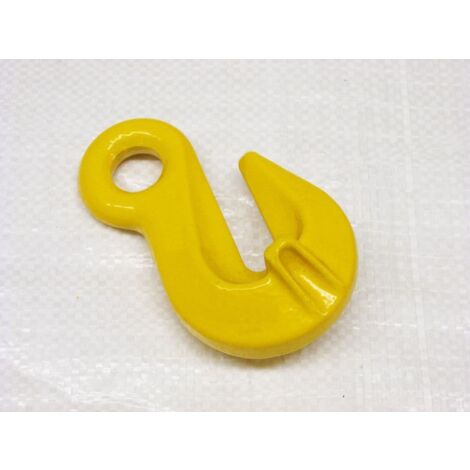

Eye Grab Hook Grade 80 22MM (G80 15 Ton Lifting Chain Sling Shortening Clutch)

Name: Eye Grab Hook Grade 80 22MM (G80 15 Ton Lifting Chain Sling Shortening Clutch)
Brand: SECUREFIX DIRECT
SKU: SFYASEGH22
Price: 49.5 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by SecureFix Direct

Product information

Description

General description

Eye Grab Hook Grade 80 22MM is a high-quality lifting accessory designed for use in the lifting gear industry, particularly with chain slings. This eye type grab hook allows for the shortening of chains to meet specific lifting requirements.

Technical specifications

Material: Grade 80 (G80)

Chain Size: 22MM

Finish: Yellow (may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Product Codes and Specifications:

SFYASEGH07: SWL 2 Tonne, A 17.5 MM, B 60 MM, C 92 MM, D 10 MM, E 11 MM, F 31.5 MM

SFYASEGH10: SWL 3.15 Tonne, A 19.5 MM, B 77 MM, C 120 MM, D 12.5 MM, E 13.5 MM, F 45 MM

SFYASEGH13: SWL 5.3 Tonne, A 25 MM, B 97 MM, C 160 MM, D 15 MM, E 16.5 MM, F 60 MM

SFYASEGH16: SWL 8 Tonne, A 29 MM, B 105 MM, C 165 MM, D 18 MM, E 20 MM, F 70 MM

SFYASEGH20: SWL 12.5 Tonne, A 37.5 MM, B 140 MM, C 215 MM, D 23 MM, E 24 MM, F 80 MM

SFYASEGH22: SWL 15 Tonne, A 42.5 MM, B 160 MM, C 255 MM, D 27 MM, E 27 MM, F 95 MM

SFYASEGH26: SWL 21.2 Tonne, A 44.5 MM, B 180 MM, C 300 MM, D 27.5 MM, E 35 MM, F 100 MM

SFYASEGH32: SWL 31.5 Tonne, A 55 MM, B 227 MM, C 365 MM, D 34 MM, E 43 MM, F 123 MM

Usage

These grab hooks are primarily used in conjunction with chain slings. By attaching a chain to the grab hook, users can effectively shorten the chain to suit their lifting needs.

Other information

*Test Certificate will be supplied via email*

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Pcs per pack
1
Material
Two-material
Weight
100 g
ManoMano Reference
ME27139172
MMID
799202521503
Product code
SFYASEGH22
EAN
0600988486041
