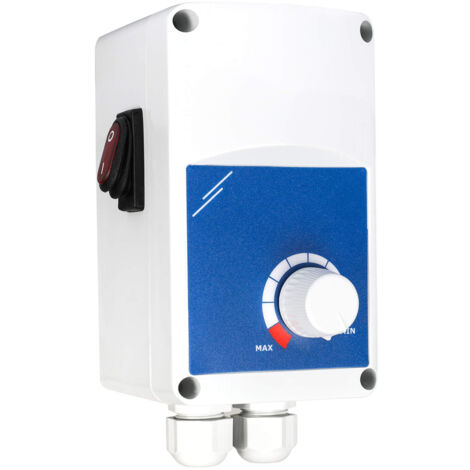

Fan speed switch / speed controller unit CasaFan WS

Name: Fan speed switch / speed controller unit CasaFan WS
Brand: CASAFAN
SKU: 98501
Price: 182.45 GBP
Availability: InStock
Rating: 5 (2 reviews)

Sold by creoven

Product information

Description

General description

Regulate the speed of your fans effortlessly with the CasaFan WS speed controller unit. This unit operates on the principle of generalized phase control, allowing for smooth adjustments to fan speeds. Please note that at lower speeds, a buzzing sound may occur; for quieter environments, a step transformer is recommended. The controller features a potentiometer for setting the minimum rotation speed, ensuring that the motor starts smoothly.

Technical specifications

Model WS 1.5: Voltage: 220-240V, Max Current: 1.5A, Dimensions: 86 x 86 x 65 mm, Protection Class: IP55/44

Model WS 2.5: Voltage: 220-240V, Max Current: 2.5A, Dimensions: 86 x 86 x 65 mm, Protection Class: IP55/44

Model WS 5.0: Voltage: 220-240V, Max Current: 5.0A, Dimensions: 83 x 160 x 71 mm, Protection Class: IP54

Model WS 10.0: Voltage: 220-240V, Max Current: 10.0A, Dimensions: 115 x 195 x 95 mm, Protection Class: IP54

Compatibility and accessories

For models WS 1.5 and WS 2.5, these controllers are compatible with commercially available flush-mounted sockets and switch systems from other manufacturers, provided they have a rotary knob for a 6mm axis. Models WS 5.0 and WS 10.0 are designed for surface-mounted sockets.

Other information

When connecting multiple fans to one controller, ensure to calculate a 10% reserve load and pay attention to the rated load and maximum load specifications.

Features

Brand
CASAFAN
Pcs per pack
1
Colour
White
Cap fitting
Integrated LED
Intended use
Indoor

Customer reviews

5,0

/ 2 Reviews

Reviews verified by ManoMano

JJean-Charles

Published on 06/09/2025, France

Works properly with motor less than 10A
