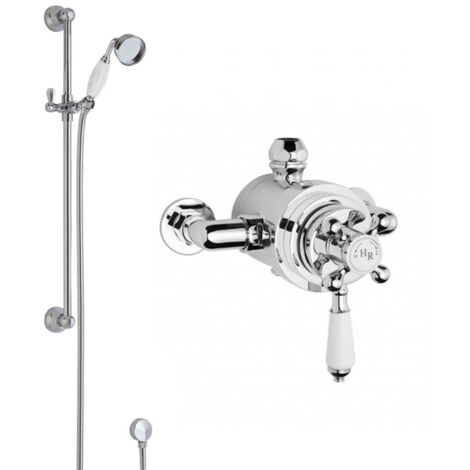

Hudson Reed Traditional Dual Exposed Shower Valve with Slider Rail Kit - Chrome

Name: Hudson Reed Traditional Dual Exposed Shower Valve with Slider Rail Kit - Chrome
Brand: HUDSON REED
SKU: TSVT104+A3211
Price: 298.95 GBP
Availability: InStock

Sold by Heat & Plumb

Product information

Description

General description

Combining the elegance of traditional styling with modern technology, the Hudson Reed Traditional Dual Exposed Shower Valve with Slider Rail Kit in Chrome offers a sophisticated solution for your showering needs. This thermostatic shower valve ensures precise temperature control, maintaining a consistent temperature even with fluctuating water pressure, and features a built-in anti-scald device for added safety.

Technical specifications

Shower Type: Thermostatic Shower Valve

Valve Position: Exposed

Shower Valve Outlets: 1

Shower Kit Height: 750mm

Minimum Pressure: 0.1 Bar

Maximum Pressure: 3.0 Bar

Connection Centres: 150mm

Inlet Connection Size: 1/2 BSP

Material: Brass

Colour: Chrome

Flow Rate @ 0.1 Bar: 5.5 l/min

Flow Rate @ 0.5 Bar: 14.5 l/min

Flow Rate @ 1.0 Bar: 22 l/min

Flow Rate @ 2.0 Bar: 30 l/min

Flow Rate @ 3.0 Bar: 35 l/min

Brand: Hudson Reed

Style: Traditional

EAN Barcode: 5056211804192 + 5055146101079

Manufacturer Part Number(s): TSVT104+A3211

Compatibility and accessories

Suitable for all systems: gravity fed, pumped, unvented high pressure, or fully modulated combi-boilers

Includes Shower Kit and Shower Valve

Installation

The cartridge is fully reversible, allowing for easy installation even if hot and cold supplies are reversed without the need for re-plumbing.

Usage

Thermostatic control maintains temperature within +/- 2 to 3 degrees Celsius.

Excellent flow rates even at low pressure.

Simply remove the cartridge, turn it 180 degrees, and replace for maintenance.

Other information

Shower valve guarantee: 20 years against faulty workmanship or materials (1 year on serviceable and moving parts).

Shower rail kit guarantee: 5 years against faulty workmanship or materials (1 year on serviceable and moving parts).

TMV2 approved product.

Features

Brand
HUDSON REED
Material
Brass
Intended use of the tap
Shower
Height
75 cm
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Number of outlets
1
Max pressure
3 bar
Pressure
3 bar
Pcs per pack
1
Wall-mounted tap
No
Tap head only
No
Type of installation method
For mounting
Tap type
Dual-lever mixer
ManoMano Reference
ME15402789
MMID
529496519003
Product code
TSVT104+A3211
