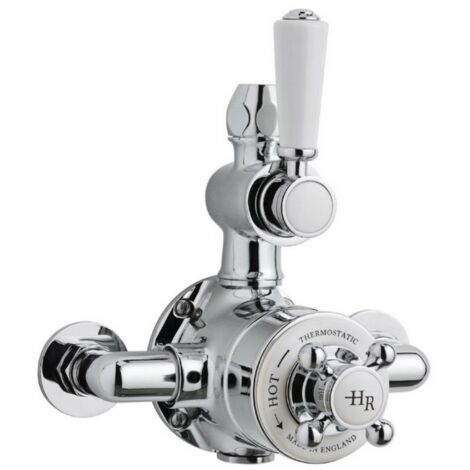

Hudson Reed Topaz Twin Exposed Shower Valve Dual Handle - Chrome

Name: Hudson Reed Topaz Twin Exposed Shower Valve Dual Handle - Chrome
Brand: HUDSON REED
SKU: TSVT101
Price: 223.95 GBP
Availability: InStock

Sold by Heat & Plumb

Product information

Description

General description

For those who appreciate classic design, the Hudson Reed Topaz Exposed Shower Valve is an ideal choice. While it features a traditional aesthetic, this valve incorporates modern technology to enhance performance. It is engineered for precise flow control, even in low-pressure systems, and includes full thermal protection to prevent scalding in case of hot or cold water shut-off. Additionally, the patented cartridge minimizes calcium build-up, making it suitable for hard water areas.

Technical specifications

Shower Type: Thermostatic Shower Valve

Controls: 2

Valve Position: Exposed

Valve Shape: Round

Handle Type: Crosshead/Lever

Minimum Pressure: 0.1 Bar

Maximum Pressure: 3.0 Bar

Shower Valve Height: 206 mm

Shower Valve Width: 195 mm

Shower Valve Depth: 135 mm

Inlet Connection Size: 15 mm (1/2 BSP)

Connection Centres: 150 mm

Material: Brass

Colour: Chrome/White

Weight: 2.5 Kg

Flow Rate @ 0.1 Bar: 4.5 l/min

Flow Rate @ 0.5 Bar: 13 l/min

Flow Rate @ 1.0 Bar: 18.5 l/min

Flow Rate @ 2.0 Bar: 26 l/min

Flow Rate @ 3.0 Bar: 33 l/min

EAN Barcode: 5055275831588

Manufacturer Part Number: TSVT101

Compatibility and accessories

Suitable for all systems: gravity fed, pumped, unvented high pressure, or fully modulated combi-boilers

Installation

The cartridge is fully reversible, allowing for easy adjustment if hot and cold supplies are reversed without the need for re-plumbing.

To adjust, simply remove the cartridge, turn it 180 degrees, and replace it.

Usage

Accurate flow control with thermostatic control to +/- 1 degree, even with fluctuating water pressure.

In the event of hot or cold water failure, the valve will shut down according to relevant standards.

Other information

Guaranteed for 20 years against faulty workmanship or materials (1 year on serviceable and moving parts).

Features

Brand
HUDSON REED
Colour
White
Material
Brass
Intended use of the tap
Shower
Shape
Rounded
Height
20.6 cm
Hose length
13.5 cm
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Number of outlets
1
Health standard
EN 442
Weight
2.5 kg
Max pressure
3 bar
Pressure
3 bar
Depth
13.5 cm
Wall-mounted tap
No
Tap head only
No
Type of installation method
For mounting
Tap type
Dual-lever mixer
ManoMano Reference
ME14669812
MMID
126554250080
Product code
TSVT101
EAN
5055275831588
