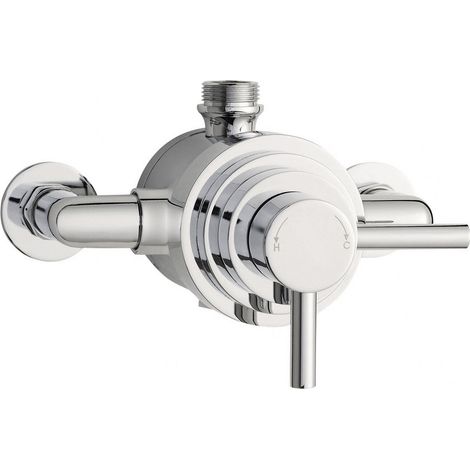

Hudson Reed Tec Dual Exposed Shower Valve Dual Handle - Chrome

Name: Hudson Reed Tec Dual Exposed Shower Valve Dual Handle - Chrome
Brand: HUDSON REED
SKU: jty026
Price: 212.95 GBP
Availability: InStock
Rating: 5 (1 reviews)

Sold by Heat & Plumb

Product information

Description

General description

Hudson Reed Tec Dual Exposed Shower Valve features a minimalist sleek design and is manufactured from solid brass. This thermostatic shower valve provides accurate flow control and is designed to supply water to one outlet. It ensures full thermal protection to prevent scalding in the event of hot or cold water shut off, and it will automatically shut down in case of water failure.

Technical specifications

Shower Type: Thermostatic Shower Valve

Controls: 2

Valve Position: Exposed

Valve Shape: Round

Handle Type: Lever

Shower Valve Height: 140mm

Shower Valve Width: 155mm

Shower Valve Depth: 150mm

Inlet Connection Size: 15mm (1/2 BSP)

Connection Centres: 150mm

Material: Brass

Colour: Chrome

Weight: 3.45 Kg

Flow Rate @ 0.1 Bar: 5.5 l/min

Flow Rate @ 0.5 Bar: 14.5 l/min

Flow Rate @ 1.0 Bar: 22 l/min

Flow Rate @ 2.0 Bar: 30 l/min

Flow Rate @ 3.0 Bar: 35 l/min

Maximum Pressure: 3.0 Bar

Minimum Pressure: 0.1 Bar

Manufacturer Part Number: JTY026

EAN Barcode: 5055146191193

Compatibility and accessories

Suitable for use with all systems: gravity fed, pumped, unvented high pressure, or fully modulated combi-boilers

Installation

The cartridge is fully reversible, allowing for easy adjustment if hot and cold supplies are reversed without the need for re-plumbing

Simply remove the cartridge, turn it 180 degrees, and replace it

Usage

Provides excellent flow rates even at low pressure

Delivers 5.5 litres per minute at 0.1 bar pressure

Other information

Guarantee: 20 years against faulty workmanship or materials (1 year on serviceable and moving parts)

Features

Brand
HUDSON REED
Colour
Grey
Material
Brass
Adapted for PRM
No
With waste included
No
With anti-limescale function
No
Intended use of the tap
Shower
Hand shower included
No
Pull-out spray
No
Water saving
No
Shape
Rounded
Height
14 cm
Flow limiter
No
Temperature limiter
No
Hose length
15 cm
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Number of outlets
1
Weight
3.4 kg
Pressure
3 bar
Depth
15 cm
Concealed tap
No
Wall-mounted tap
No
38°C Safety
No
Tap head only
No
Cool body thermostatic
No
Type of installation method
For mounting
Tap type
Dual-lever mixer
ManoMano Reference
ME1302097
MMID
812180440791
Product code
jty026
EAN
5055146191193

Customer reviews

5,0

/ 1 Reviews

Reviews verified by ManoMano

AAlan

Published on 06/11/2020, United Kingdom

We very much like this shower valve, it is very much like the one we replaced, which meant we didn't have to buy an entire new shower. It has slightly less pressure than our old valve but it looks good and does it's job very well.
