General description

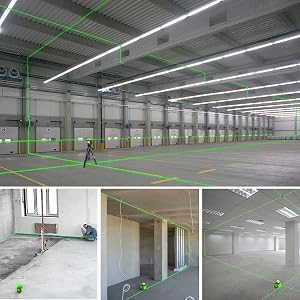

The Huepar 3D Cross Line Laser Level is a versatile leveling and alignment tool featuring three 360° laser planes, including one horizontal and two vertical lines. This allows users to cover the entire room, making it ideal for various applications. The laser level is equipped with a smart pendulum system that self-levels and indicates out-of-level conditions. It can also switch to manual mode for use at any angle.Technical specifications
- Projection: 3 x 360° Green Laser Lines
- Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
- Laser Wavelength: 505-520nm
- Horizontal / Vertical Accuracy: ±1/9 Inch at 33 Feet
- Leveling / Compensation Range: ±4°
- Leveling Time: 3s
- Working Distance: 85 feet (300 LUX), 200 feet with Huepar Laser Detector

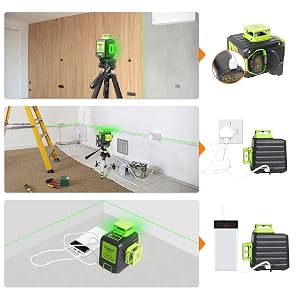

- Power Source: 3.7V / 5200mAh Li-ion Battery
- Reference Operating Time: About 8 hours with all laser beams on
- Mount Size: 1/4"-20
- IP Rating: IP54 dust-proof, waterproof, and shockproof
- Operation Temperature Range: Between -10℃ and +50℃
- Storage Temperature Range: Between -20℃ and +70℃
Compatibility and accessories
- Compatible with Huepar Line Laser Receiver for extended range
- Includes a hard carry case for easy transport and storage

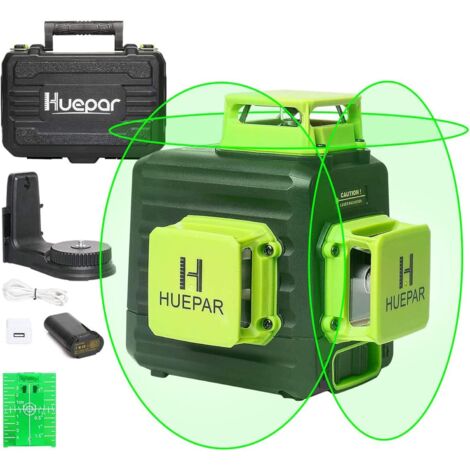

- Package contents: Laser level, rechargeable lithium battery, Type-C power cord, power adapter, magnetic pivoting base, green laser target plate, multilingual user manual

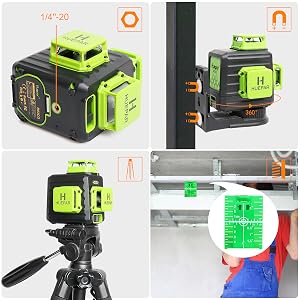

Installation
- 1/4"-20 female thread for mounting on tripods or laser mounting poles
- Magnetic pivoting base for easy attachment to metal surfaces
- Replaceable protective cover for laser windows
Usage

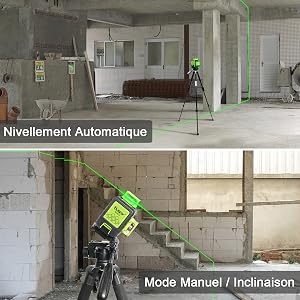

- Self-leveling mode for automatic leveling within ±4°
- Manual mode for locking laser lines at any angle

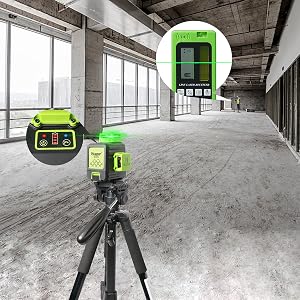

- Pulse mode for use in bright conditions with a laser receiver
Other information
WARNING: Do not point the laser beam directly into the eyes. The device is a laser class 2 laser product according to IEC / EN60825-1 / 2014. It is allowed to use the device without any further safety precautions.
