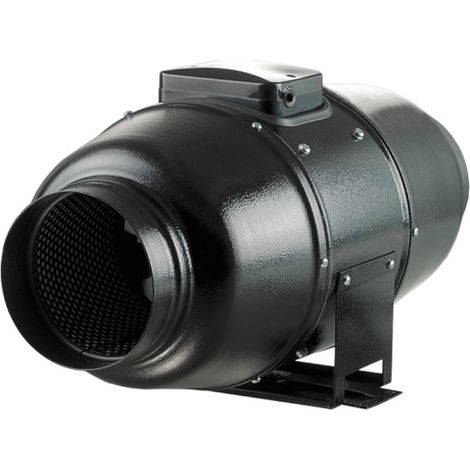

Inline fan TT Silent M 100 U up to 240 m³/h

Dimensions and technical details

• 220-240 V ~ 50/60 Hz
• Housing colour: black
• Housing material: powder-coated steel
• 50mm mineral wool layer for sound and heat insulation
• Nominal size: 100 mm
• Wattage: 24 / 26 W
• Current consumption: 0.1 / 0.11 A
• Revolutions per minute: 2030 / 2630
• Airflow rate: 170 / 240 m³/h
• Sound pressure Lp-3m: 24 / 29 dB(A)
• Height: 237 mm
• Width: 215 mm
• Width mounting bracket: 243 mm
• Length: 505 mm
• Diameter duct connection : 98 mm
• Max. temperature for continuous operation: 60°C
• IP code: IPX4
• Weight: 4.6 kg
• Integrated speed control (2 speeds / off) with electric thermostat and temperature sensor inside the duct. Temperature-controlled operation. Lead wire with IEC C14 plug.
• Ball-bearing motor
• Mounting options: any position
• Motor unit can be removed quickly and easily for cleaning and maintenance
• Application: ventilation systems requiring high pressure and low noise level
• Ideal for air extraction in damp rooms of residential and commercial properties
