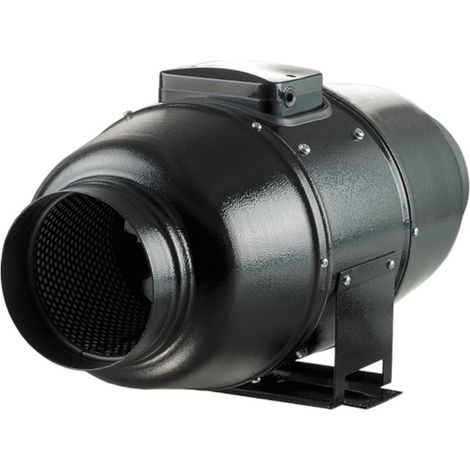

Inline fan TT Silent M 250 V up to 1330 m³/h

Dimensions and technical details

• 220-240 V ~ 50/60 Hz
• Housing colour: black
• Housing material: powder-coated steel
• 50mm mineral wool layer for sound and heat insulation
• Nominal size: 250 mm
• Wattage: 127 / 178 W
• Current consumption: 0.52 / 0.79 A
• Revolutions per minute: 1965 / 2495
• Airflow rate: 1050 / 1330 m³/h
• Sound pressure Lp-3m: 34 / 38 dB(A)
• Height: 360 mm
• Width: 358 mm
• Width mounting bracket: 445 mm
• Length: 685 mm
• Diameter duct connection : 248 mm
• Max. temperature for continuous operation: 60°C
• IP code: IPX4
• Weight: 15 kg
• Integrated speed control: 2 speeds / off
• Ball-bearing motor
• Mounting options: any position
• Motor unit can be removed quickly and easily for cleaning and maintenance
• Application: ventilation systems requiring high pressure and low noise level
• Ideal for air extraction in damp rooms of residential and commercial properties
