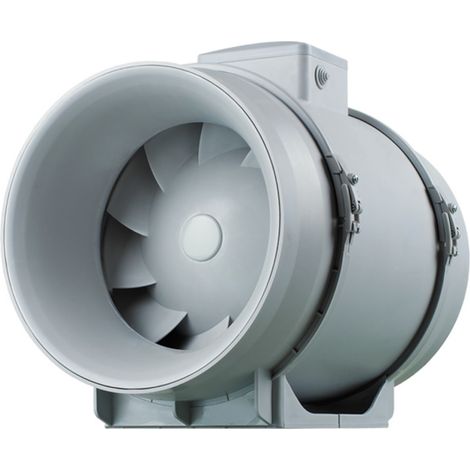

Inline fan Vents TT Pro 315 V up to 2050 m³/h

Dimensions and technical details

• 220-240 V ~ 50/60 Hz
• Housing colour: grey
• Housing material: robust, flame-retardant polypropylene
• Nominal size: 315 mm
• Wattage min. / max.: 230 / 320 W
• Current consumption min. / max.: 1.0 / 1.42 A
• Revolutions per minute min. / max.: 1890 / 2430
• Airflow rate min. / max.: 1570 / 2050 m³/h
• Sound pressure Lp-3m min. / max.: 49 / 58 dB(A)
• Height: 408 mm
• Width: 362 mm
• Length: 445 mm
• Diameter duct connection : 310 mm
• Max. temperature for continuous operation: 60°C
• IP code: IPX4
• Weight: 11.4 kg
• Integrated speed control: 2 speeds / off
• Ball-bearing motor
• Mounting options: any position
• Motor unit can be removed quickly and easily for cleaning and maintenance
• Application: ventilation systems requiring high pressure and low noise level
• Ideal for air extraction in damp rooms of residential and commercial properties
