General description

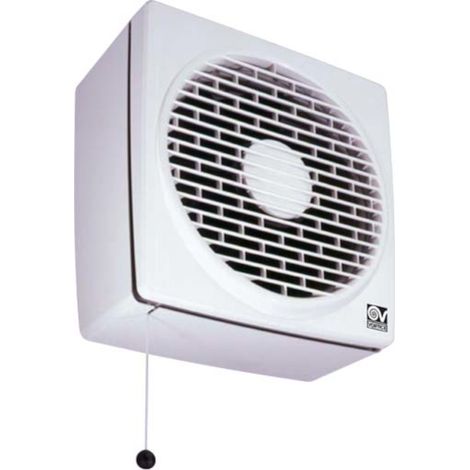

The Vario 230/9 P-Q window fan is designed for efficient ventilation, featuring a pull cord for easy operation. Its robust construction ensures durability and resistance to UV rays, making it suitable for various environments.Technical specifications
- Voltage: 220-240 V ~ 50 Hz
- Colour: white
- Material: impact-resistant, UV-resistant ABS plastic
- Nominal size: 230 mm
- Speed levels: 1
- Wattage: 22 W
- Current consumption: 0.1 A
- Revolutions per minute: 790
- Max. airflow rate: 480 m³/h
- Sound pressure level Lp-3m: 35.6 dB(A)
- IP rating: IPX4
- Protection class: II
- Max. ambient temperature: +50°C
- Weight: 3.45 kg
- Self-lubricating plain bearings
- Manual internal shutter flap prevents cold air from entering when the fan is off
- Thermal overload protection
- Pull switch operation: on / off
Other information
| Model | A | B | C | D | E min. | E max. | Ø Cutout |
|---|---|---|---|---|---|---|---|
| 230/9 | 294 mm | 297 mm | 31 mm | 130 mm | 2 mm | 38 mm | 257-262 mm |
