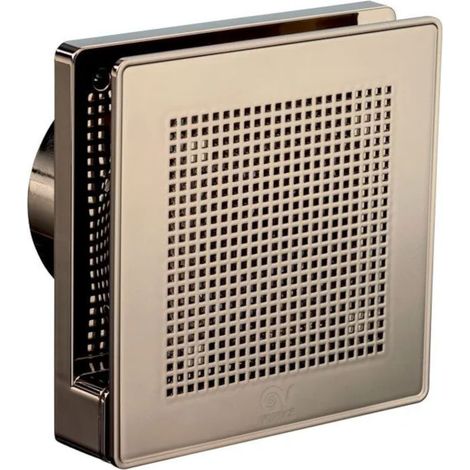

Extractor Fan Punto Evo ME 100 LL T Yellow Gold

Sold by creoven

Product information

Description

Dimensions and technical details

230 V ~ 50 Hz
Housing colour: yellow gold
Housing material: plastic, UV-resistant, nanotech coating
Nominal size: 100 mm
Bearings: ball bearings
Speed levels: 2
Wattage: 5 / 9 W
Current consumption: 0.039 / 0.052 A
Revolutions per minute: 1700 / 2240
Airflow rate: 65 / 95 m³/h
Airflow rate: 18.1 / 26.4 l/s
Sound pressure level Lp-3m: 20.8 / 26.9 dB(A)
Total pressure Pmax: 24.52 / 46.09 Pa
Max. temperature for continuous operation: +50°C
Protection class: IP45
Insulation class: II
Front cover: 159 x 159 x 40.5 mm
Total depth: 116.5 mm
Diameter duct connector: 98 mm
Weight: 0.6 kg
Adjustable shut-off timer (3-20 min): fan turns off after expiration of the pre-set time
Thermal overload protection
Integral non-return valve prevents cold air from infiltrating the system
Mounting options: wall, ceiling
Application: direct extraction of air or extraction of air via short pipe runs in small and medium-sized residential buildings, commercial buildings

Features

Brand
VORTICE
Colour
Yellow
Shape
Square
IP rating
IP45
Material
Acrylonitrile butadiene styrene (ABS)
With timer
Yes
Integrated non-return valve
Yes
Weight
600 g
Power
5 W
Noise level
20.8 dB
Pcs per pack
1
Ball bearings
Yes
Voltage
240 V
Type of lawn aerator
Classic
ManoMano Reference
ME30903070
MMID
126030597077
Product code
11316
EAN
8010300113166
