Trend KWJ700 Kitchen Worktop Jig 700mm TREKWJ700

Name: Trend KWJ700 Kitchen Worktop Jig 700mm TREKWJ700
Brand: TREND
SKU: KWJ700
Price: 98.99 GBP
Availability: InStock
Rating: 3.5 (2 reviews)

Sold by Powertoolmate and 6 other sellers

Often purchased together

Product information

Description

General description

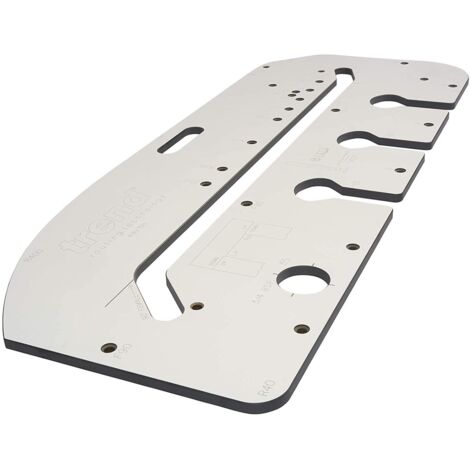

The Trend KWJ700 Kitchen Worktop Jig is a robust and durable tool designed for cutting worktops up to 700mm wide. Made from hard-wearing solid laminate, this 12mm thick jig allows you to cut both parts of the joint in just 15 minutes, including setup time. It features various corner solutions and is suitable for a range of worktop thicknesses.

Technical specifications

Length: 985mm

Width: 390mm

Thickness: 12mm

Weight: 5.4kg

End Cut: 45°

Corner Radii: 40mm, 100mm, 400mm

Corner Mitre Joint: 45°

Female cut material width loss: 35mm

Compatibility and accessories

The jig requires the following tools for operation:

A portable plunge router with 12.7mm (1/2 inch) shank capacity and a minimum of 1300 watts

A template guide bush with a 30mm outside diameter

A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length

Two clamps

Usage

This jig is designed for cutting various worktop configurations, including:

Left hand and right hand corners

400mm radius peninsular joint

45° end cut with slight radius

45° trade corner solution for hob units

35mm kitchen door hole

3/4 inch BSP hole for mixer taps

Other information

Features

Brand
TREND
Colour
Grey
Length
70 cm
NF certification
NF400
Material
Wood

Customer reviews

3,5

/ 2 Reviews

Reviews verified by ManoMano

MManoMano Customer

Published on 11/05/2022, France

Very good template from Trend as often all their products.
