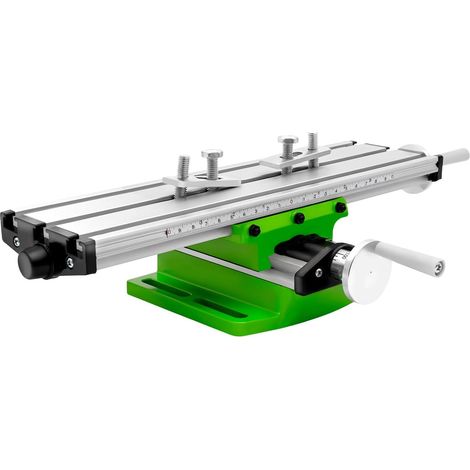

Milling Compound Working Table Cross Sliding Bench Drill Vise Fixture Worktable Multifunction Worktable Milling Working, Compound Slide Bench Drilling Milling for Stand, 310 x 90 x 78mm

~~£39.99~~

£1Offered

To be applied on the payment page

Offer valid today only.

Sold by DENCRESTUK

Product information

Description

General description

This multifunctional milling work table features precision scales and adjustments to meet your machining needs. Constructed from high-strength aluminum alloy, it ensures stability and precision during long-term use, making it an ideal choice for improving work efficiency and milling quality.

Technical specifications

Color: White, Green

Material: Aluminum Alloy

Process: Spraying Paint

Mount Type: Free Standing

Distance Between Mounting Holes: 10cm/3.94in

Minimum Hand Wheel Scale Value: 0.05mm/0.002in

Hand Wheel Scale of Each Circle: 1.25mm/0.049in

Distance Between Grooves: 3.4cm/1.34in

X Direction Stroke: 20cm/7.87in

Y Direction Stroke: 5cm/1.97in

Work Table Size: 31*9cm/12.2*3.54in

Overall Size: 39.5*24.5*7.8cm/15.55*9.65*3.07in

Base Length: 12.3cm/4.84in

Package Size: 35*20*8cm/13.78*7.87*3.15in

Gross Weight: 1.55kg/3.42lbs

Installation

Assembly Required: Yes

Includes English instruction and necessary accessories for installation.

Usage

Suitable for mini table drills, electric drill holders, and other small equipment.

The adjustable design with three slides allows for flexible handling of the workpiece.

The fixed jaw helps to clamp the workpiece securely, preventing slipping or shaking during operation.

Other information

Easy to clean with a smooth surface.

Notes: Please check the size carefully before ordering. Tighten screws if the slide is wobbly, or loosen them if it slides hard. Allow for slight color differences and measurement errors.

Features

Brand
CNCEST
Height
7.8 cm
Warranty
1 year(s)
Colour
Green
Compatible machine
Drill
Material
Aluminium
Weight
1550 g
ManoMano Reference
ME94089643
MMID
989481391829
Product code
20211012076
EAN
762203054562
