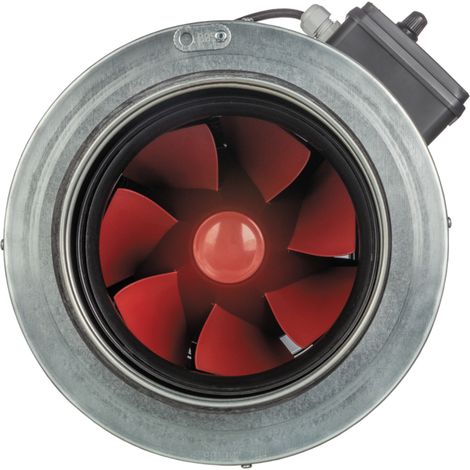

Mixed-Flow Inline Fan Boost I 250 V

Product information

Description

General description

The Mixed-Flow Inline Fan Boost I 250 V is designed for efficient ventilation in both residential and commercial properties. It is particularly effective for air extraction in damp rooms, ensuring high pressure and low noise levels.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Housing colour: silver

Housing material: galvanised steel

Acoustic material layer: 30 mm for sound and heat insulation

Nominal size: 250 mm

Bearings: ball bearing

Speed levels: 3

Wattage: 144 / 173 / 188 W

Current consumption: 0.7 / 0.81 / 0.84 A

Revolutions per minute: 2292 / 2626 / 2876

Airflow rate: 1007 / 1404 / 1670 m³/h

Airflow rate: 280 / 390 / 464 l/s

Sound pressure Lp-3m: 38 / 43 / 45 dB(A)

Diameter: 337 mm

Diameter with terminal box: 389 mm

Length: 739 mm

Diameter duct connection: 249 mm

Weight: 9.8 kg

Max. temperature of transported air: -25 to +55°C

IP rating: IPX4

IP rating motor: IP20

Integrated speed control: 3 speeds

Mounting options: any position
