General description
The NuaSol Photovoltaic Solar Panel Bracket 2 Mounting Set is a comprehensive roof mounting kit designed for the installation of two solar modules. This DIY solution includes all necessary components to securely mount solar panels on your roof, ensuring a reliable and efficient setup for your mini PV system or balcony power plant.
Technical specifications
- Dimensions of single profile: 1230 x 40 x 40 mm
- Total length: 2460 mm
- Dimensions of connection: 120 x 45.5 x 25 mm
- Dimensions middle clamp: 70 x 39.4 x 22.4 mm
- Dimensions end clamp: 70 x 34 x 28.6 mm
- Dimensions end cap: 43 x 20 x 43 mm
- Material of roof hooks: Stainless steel (SUS 304)
- Flat steel hook dimensions: 60 x 30 x 5 mm
- Length of hook inside: 115 mm
- Base plate dimensions: 140 x 54 x 5 mm
- Max. snow load: approx. 140 kg
- Max. wind speed: 60 m/s
- Weight of roof hook: 0.76 kg
- Aluminium profile material: AL5005-T5
- Width compatibility for solar panels: Up to 1150 mm
Installation
The installation process is straightforward and includes the following steps:
- Fasten roof hooks underneath the profile
- Fasten end clamps on the ends
- Set end caps
- Prepare profiles
- Lift roof tiles
- Screw on roof hooks
- Hook in solar modules
- Tighten end clamps
Usage
This mounting set is suitable for solar modules with a height of 35 mm. The end clamps made of aluminium AL6005-T5 securely fix the solar module to the aluminium profile, ensuring stability and durability.
Other information

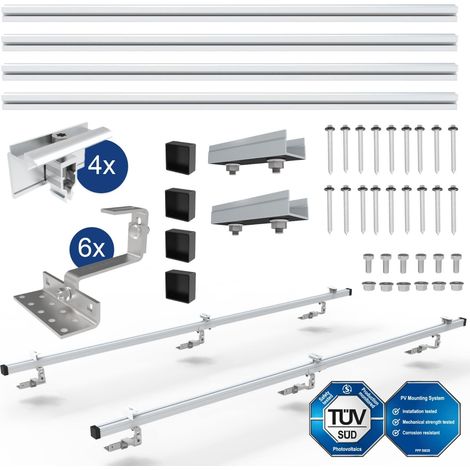

Scope of delivery includes:
- 4x mounting rail 1230mm
- 2x 40x40 rail connectors
- 2x intermediate clamp
- 4x end clamp
- 6x hexagon head screw
- 6x flange nut
- Adjustable roof hook 6x (6x L-base; 6x Z-part; 6x L-joint; 12x support screw M10x25; 12x M10 flange nut)
- 4x rail cap
- 18x wood screws
TÜV Süd tested safety, certificate number: Z2 076828 0068 Rev. 00.
