General description

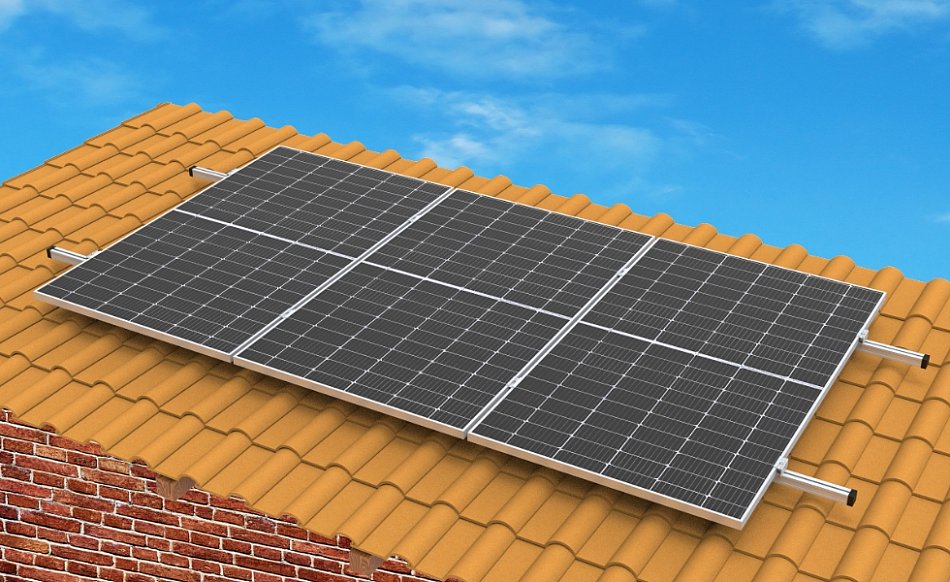

NuaSol offers a comprehensive roof mounting kit extension designed for one solar module, ideal for DIY enthusiasts looking to install a mini PV system or balcony power plant. This set includes all necessary components for securely mounting solar modules on tiled roofs, ensuring a reliable and efficient installation.Technical specifications
- Dimensions of single profile: 1230 x 40 x 40 mm
- Total length: 1230 mm
- Dimensions of connection: 120 x 45.5 x 25 mm
- Dimensions of middle clamp: 70 x 39.4 x 22.4 mm
- Material of roof hooks: Stainless steel (SUS 304)
- Flat steel hook dimensions: 60 x 30 x 5 mm
- Length of hook inside: 115 mm
- Dimensions of base plate: 140 x 54 x 5 mm
- Mounting holes: 9 x 9 mm offset
- Height adjustment of base plate: 44-47 mm
- Height adjustability of flat steel hook: 60-92 mm
- Slotted hole measurement: 45 x 11 mm
- Total height adjustment: 120-160 mm
- Overall dimensions: 174 x 140 x 120-160 mm
- Max. snow load: approx. 140 kg
- Wind speed: max. 60 m/s
- Weight per piece: 0.76 kg
- Aluminium profile material: AL5005-T5
- Compatible solar panel width: up to 1150 mm
Installation
The installation process is straightforward and involves the following steps:
- Fasten roof hooks underneath the profile.
- Lift roof tiles to access the installation area.
- Screw on roof hooks securely.
- Hook in solar modules onto the mounted profiles.
- Tighten middle and end clips to secure the modules.
Usage
This mounting set is suitable for solar modules with a height of 35 mm, allowing for efficient energy generation from your rooftop solar installation.
Other information
Scope of delivery includes:
- Mounting rail 1230 mm: 2x
- 40x40 rail connector: 2x
- Intermediate clamp: 2x
- Hexagon screw: 2x
- Flange nut: 2x
- Adjustable roof hook: 2x (includes 2x L-foot, 2x Z-part, 2x L-joint, 4x carriage bolt M10x25, 4x M10 flange nut)
- Wood screws: 6x
