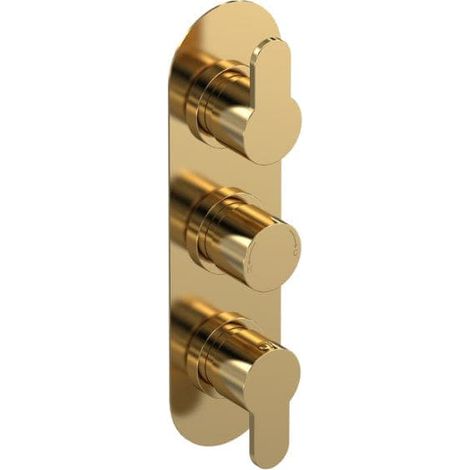

Nuie Arvan Brushed Brass Triple Concealed Thermostatic Shower Valve with Diverter - ARV8TR03

Sold by Heat & Plumb and 1 other seller

Compare with similar items

Product information

Description

Features and Benefits:

  • Shower valve supplies water to 3 outlets
  • Minimalist sleek design with brushed brass finish
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Made in Britain
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180 degree and replace
  • Manufactured from high quality brass & ABS
  • 1/4 turn ceramic disc technology for long life and smooth operation
  • TMV2 Approved
  • During installation extra care must be taken to avoid damaging the fittings
  • Guarantee : 3 Year (12 months on serviceable moving parts from the date of purchase), please see manufacturer guarantee policy for more information

Important Information:

  • This product is brushed brass plated, not made of 100% brushed brass
  • Shower Kit sold separately (Available in our Store)
Shower TypeThermostatic
Shower Valve Controls3
Valve PositionConcealed
Valve ShapeOval
Handle TypeKnob/Lever
Outlets3
Min Pressure0.5 Bar
Shower Valve Height280mm
Shower Valve Width80mm
Shower Valve Depth72-85mm
Inlet Connection Size3/4 BSP
Outlet Connection Size3/4 BSP
MaterialBrass
ColourBrushed Brass
StyleModern
MarketDomestic
Flow Rate - 0.5 Bar13 l/min
Flow Rate - 1.0 Bar17 l/min
Flow Rate - 2.0 Bar24 l/min
Flow Rate - 3.0 Bar27 l/min
BrandNuie
CollectionArvan
WRAS ApprovedYes
WRAS Approval Number250602040
TMV2 ApprovedYes
TMV2 Approval Number2603035
EAN Barcode5056462623122
Manufacturer Part Number(s)ARV8TR03

Features

  • Brand
    NUIE
  • Length
    8.5 cm
  • Width
    8 cm
  • Height
    28 cm
  • Weight
    5 kg
