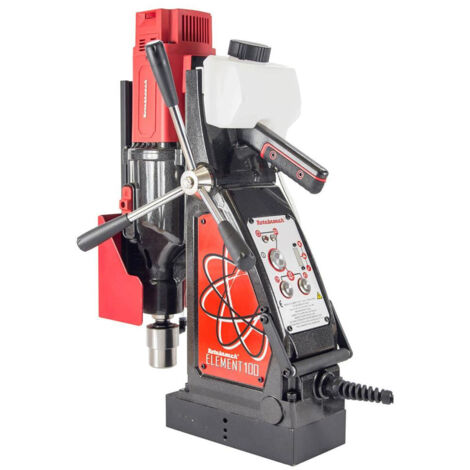

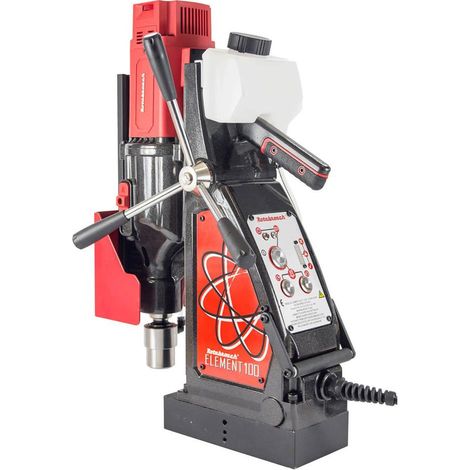

Rotabroach Element 100 110v Magnetic Drilling Machine

Name: Rotabroach Element 100 110v Magnetic Drilling Machine
Brand: ROTABROACH
SKU: ELEMENT 100 110V
Availability: OutOfStock

~~£1,671.92~~

Product out of stock

Product information

Description

General description

The Rotabroach Element 100 is a powerful magnetic drilling machine designed for large diameter drilling and cutting depths. It is capable of drilling up to 100mm in diameter and 100mm in depth, making it ideal for various industrial applications. The machine features forward and reverse functionality for tapping and is available in both swivel and non-swivel base options. Its unique dual motor protection system enhances durability and reduces wear over time.

Technical specifications

Motor Specification: 2000W

No Load RPM: Gear 1: 45-129 RPM, Gear 2: 70-208 RPM, Gear 3: 150-434 RPM, Gear 4: 240-700 RPM

Max Hole Cutting Capacity: 100mm x 100mm Deep – 31.75 with MT Drill

Overall Dimensions: Height: 560mm, Width: 230mm with Capstan, Length: 460mm with Guard

Machine Weight: 24.8kg

Magnetic Adhesion: 20,000N

Magnet Size: 228mm x 114mm

Other information

Safety Features: Cutsmart™ Technology, Fixed Guard, Magnetic Detection

Warranty: 12 Months

Features

Brand
ROTABROACH
Storage accessories
Tool case
Power source
Corded
Battery or cell included
No
Drill feature
Magnetic
Colour
Red
Safety clutch
Yes
Height
67 cm
Width
23 cm
Length
92 cm
Material
Metal
Brushless motor
Yes
Number of speeds
4
Weight
24.8 kg
Power
2000 W
Chuck
Morse taper shank
Type of electric motor
Brushless
Sold as a set
Yes
ManoMano Reference
ME6928024
MMID
696984588658
Product code
ELEMENT 100 110V
EAN
5055558530726
