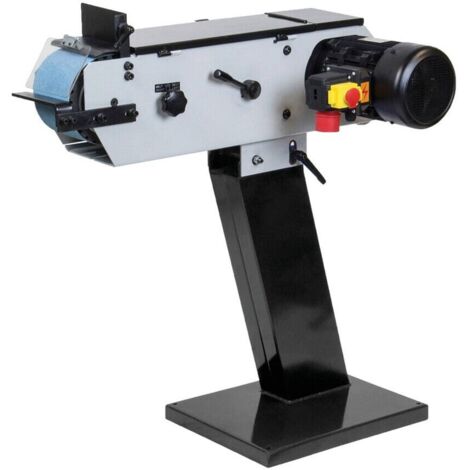

SIP 01949 150MM (6") Heavy Duty 4HP Pedestal Belt Linisher 400V

The SIP 6" Belt Linisher is designed for removing sharp edges and burrs from workpieces and finishing metalwork products. This includes cleaning and grinding of products, tubes and profiles. Ideal for metals including mild steel, aluminium and stainless steel.

With a high-quality and long-lasting zirconium bonded belt, this linisher is essential for professional metalwork, engineering and fabrication workshop processes.

Applications & uses: Ideal for removing sharp edges and burrs from metal pieces. Suitable for finishing mild steel, aluminium or stainless steel metalwork items.

What's in the box?: 1x SIP 6"Belt Linisher.

Features:

• 3-POINT BELT ACCESS FOR VERSATILE USE IN A VARIETY OF LINISHING APPLICATIONS: This versatile machine has 3 accessible working points (wheel, platen top and full platen) for a range of linishing tasks. 34mtr/sec belt speed for robust application use. An adjustable tool support ensures workpiece makes accurate contact with the wheel. An adjustable belt tracker is fitted to ensure abrasive belt is centralised at all times. The linisher head can also tilt to accommodate a variety of material lengths and sizes.
• 2000MM X 150MM ZIRCONIUM BONDED BELT OFFERS SUPERIOR DURABILITY & HEAT RESISTANCE IN USE: Long-lasting zirconium bonded belt for smoothing and finishing a variety of metal types. This includes mild steel, aluminium and stainless steel.
• QUICK-RELEASE BELT CHANGES VIA ACCESS PANEL HELPS REDUCE MACHINE DOWNTIME: The abrasive zirconium bonded belt can be quickly released and replaced using an easy-access panel.
• FLOOR-MOUNTED DESIGN USING SUPPLIED HEAVY-DUTY STEEL PEDESTAL STAND: Purpose-built steel stand allows the linisher to be mounted at a comfortable height. This makes the linisher ideal for a variety of workshop environments.
• ENHANCED SAFETY FEATURES: Fitted with an NVR switch, adjustable eye protection and spark trap for greater user safety.
• SIP 2-YEAR STANDARD SILVER WARRANTY*

Technical Data:

• Input Supply: 400v 3-PHASE
• Motor Power: 1.5kW (2hp)
• Belt Size / Grade: 2000mm x 150mm / 80G
• Belt Speed: 34mtr/sec
• Flat Grinding Height: 530mm
• Contact Wheel Size: 200mm x 150mm
• Working Height: 1240mm (Contact Wheel)

Dimensions & Weight:

• Dimensions: L62.5 x W114 x H68.5 cm
• Weight: 134.7 kg

.

SIP 6" Belt Linisher
