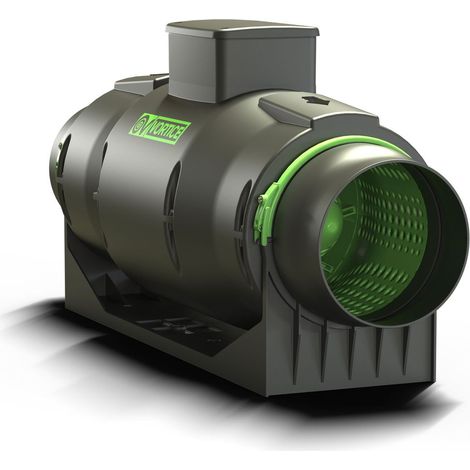

Sound-insulated inline fan Lineo 160 Quiet ES

Sold by creoven

Product information

Description

Dimensions and technical details

220-240 V ~ 50/60 Hz
0-10 V interface
Housing colour: black
Housing material: polypropylene
Nominal size: 160 mm
Speed levels: 1
Wattage: 31 W
Current consumption: 0. 34 A
Revolutions per minute: 2035
Airflow rate: 525 m³/h
Sound pressure level Lp-3m: 30.2 dB(A)
Total pressure Pmax: 234.4 Pa
Max. temperature of transported air: +60°C
Protection class: IP45
Insulation class: II
Weight: 5.2 kg
Thermal overload protection
Includes mounting bracket
Optional speed controller sold separately
Mounting position: any position
Fan unit can be removed quickly for cleaning and maintenance
Classification of fire E-d2 according to European Standard EN 13501-1

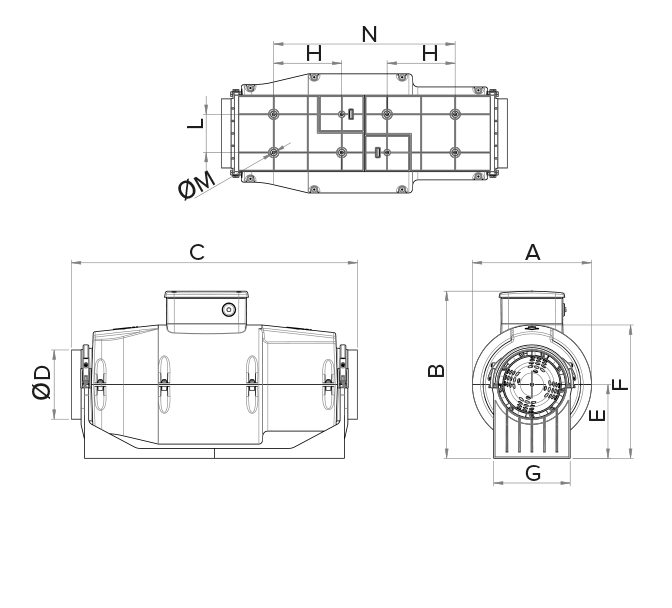

Lineo Quiet 160 ES dimensions

Dimensions in mm	A	B	C	Ø D	E	F	G	H	L	Ø M	N
Lineo 160 Quiet ES	232	320.6	570	156.5	145	261.5	170	135	85	5.5	360

Features

Brand
VORTICE
Diameter
16 cm
Weight
6.4 kg
Material
Polypropylene
Colour
Black
