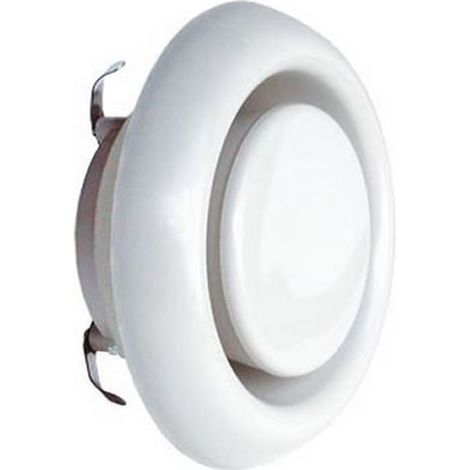

Supply and exhaust air valve CasaFan AZTVK in various sizes
(£85.89/pc)
'/%3E%3C/svg%3E)
Buying for your business?
Negotiated prices excl. VAT up to -20%
Sold by creoven
You may also like
Solar Powered Ventilator Extractor Fan (Exhaust Roof Vent Caravan Ventilation Greenhouse Camper RV)
Free shipping
150mm Ventilation Grille High quality stainless steel ventilation grille External ventilation grille with mosquito net Protects the facade and prevents cold air from entering / Stainless steel grille
4
(£25.27/kg)
Free shipping
Stainless Steel Mesh Filter, Mesh Cover, Leaf Filter, Garden Insect and Rat Filter 21x30cm
5
(£48.05/kg)
Free shipping
4 options
#1 in sales
180mm Air Vent Covers for Exterior Walls, Stainless Steel Exterior Air Outlet Grille, Round Heating Vent Cover, Cooling Vent Cover
3
Free shipping
Compare with similar items
Often purchased together
Product information
Description
Dimensions and technical details
- Supply and exhaust air valve, adjustable airflow
- Model selectable: AZTVK 75/80 to AZTVK 200
- Material: high-quality, antistatic plastic
- Colour: white
- Application: air supply and extraction in rooms without any special fire protection requirements
- Temperature range up to 100°C
- Circular foam gasket ensures false excess air cannot infiltrate from the sides, thus preventing contamination
- Suitable for pipes or wall openings with a thickness of 2cm or more
- Mounting ring is included: for installation in sheet metal ducts or thin panels
- Compensates for bumps on the wall and pipes that are plastered too deep
- Easy to install with clamping springs
- Low-noise: low sound pressure level thanks to valve disc with sound absorber
- Turning the disc adjusts airflow and pressure

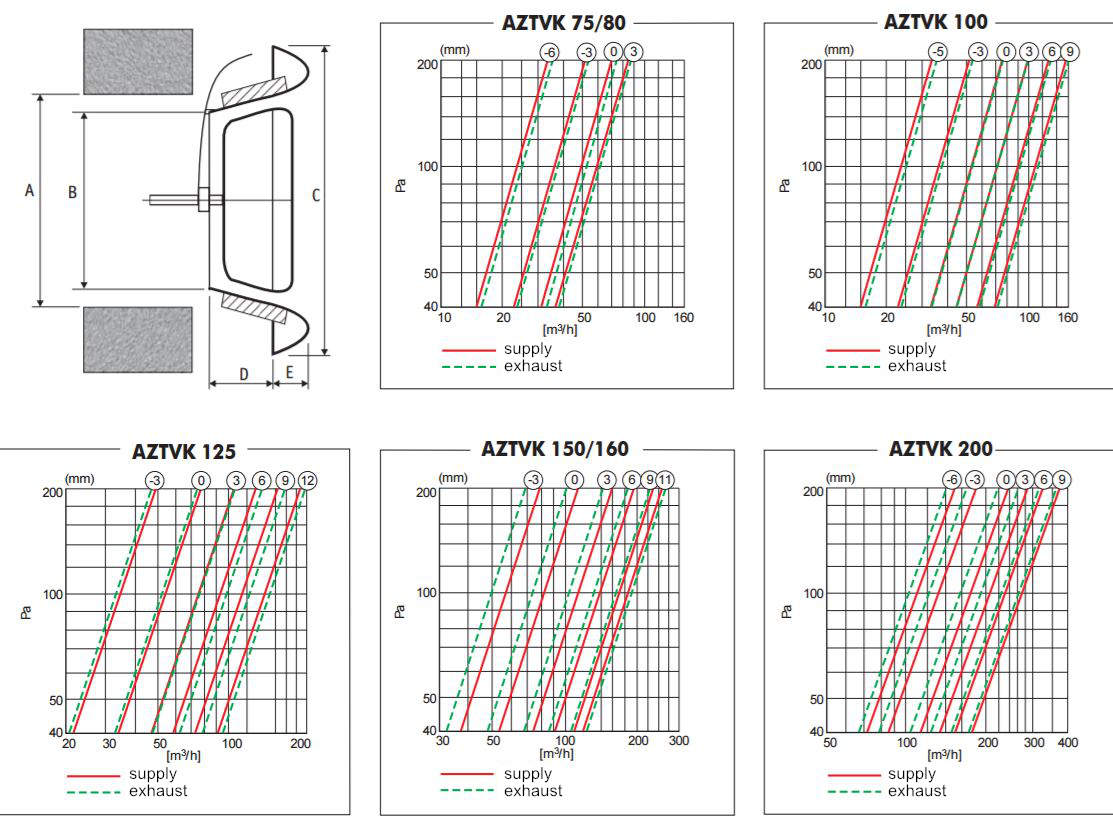

Dimensions in mm
| Model | NW | A (mm) | Ø B (mm) | Ø C (mm) | Ø D (mm) | Ø E (mm) |
|---|---|---|---|---|---|---|
| AZTVK 75/80 | 75/80 | 73 - 85 | 45 | 115 | 38 | 20 |
| AZTVK 100 | 100 | 95 - 105 | 80 | 140 | 35 | 13 |
| AZTVK 125 | 125 | 120 - 130 | 115 | 166 | 35 | 15 |
| AZTVK 150 | 150 | 150 - 165 | 120 | 204 | 37 | 17 |
| AZTVK 160 | 160 | 155 - 175 | 130 | 204 | 37 | 17 |
| AZTVK 200 | 200 | 195 - 210 | 160 | 242 | 35 | 17 |
Features
- BrandCASAFAN
- ColourWhite
- ShapeCylindrical
- MaterialPlastic
- Weight2.5 g
- Type of installation methodMortise mount
- ManoMano ReferenceME30905089
- MMID652876537425
- Product code990940
- EAN4024397356256
