TDA controller TDA-Control T IP54 various models

Product information

Description

General description

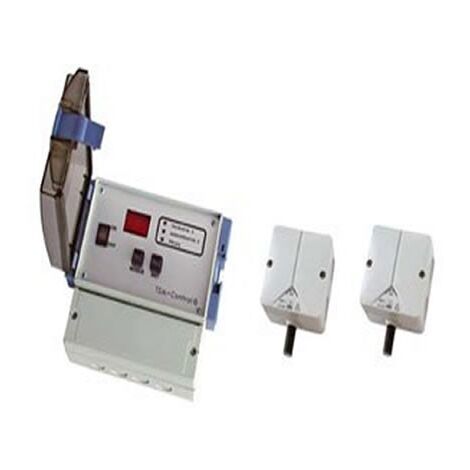

The TDA-Control T is an advanced temperature control device designed for industrial applications. It features a robust housing with a clear cover and lockable terminal compartment, ensuring durability and accessibility. The device operates on 230 Volt, 50 Hertz and is equipped with a 2-digit display for easy monitoring of values and data. With a protection code of IP54 and a maximum ambient temperature of 45°C, it is suitable for environments that require quiet operation.

Technical specifications

Rated current: 0.2 to 6.0 A

Mode of operation: Fully automatic control

Maximum ambient temperature: 45°C

Protection code: IP54

Protection class: II

Maximum length of lead wire: 150 m

Compatibility and accessories

Models available:

TDA-Control 1.5 T: Connects up to 4 fans

TDA-Control 2.5 T: Connects up to 7 fans

TDA-Control 5.0 T: Connects up to 13 fans

TDA-Control 6: Connects up to 15 fans

TDA-Control 6 E: Connects up to 15 fans, includes digital display

Installation

Requires connection with a 2-core lead wire

Usage

Automatically controls fan speed based on temperature difference between floor and ceiling

Pre-set temperature difference can be adjusted between 1-10°C

Fans activate if the temperature difference exceeds 3°C

Manual adjustment available for continuous speed control (summer mode)

Settings can be programmed and saved for efficiency

Features

Brand
CASAFAN
Power source
Corded
Integrated temperature sensor
Yes
Smart
No
Colour
White
IP rating
IP54
Material
Plastic
Programmable
Yes
Pcs per pack
1
Voltage
230 V
Control
Manual control
Compatible equipment type
Electric heating
Thermostat type
Corded
ManoMano Reference
ME30905535
MMID
621547593011
Product code
983019
EAN
4024397347193
