TDA controller TDA-Control T IP54 various models

Product information

Description

General description

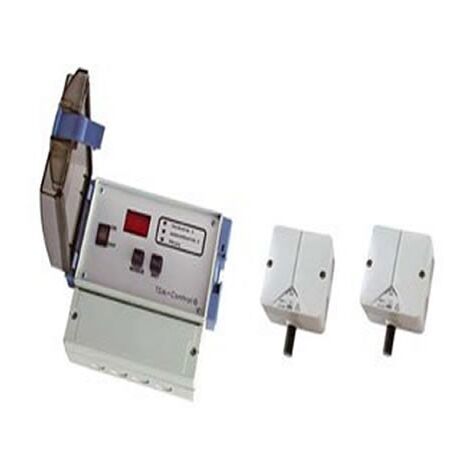

The TDA-Control T is an advanced temperature control device designed for industrial applications. It features an industrial housing with a clear, lockable cover and an accessible terminal compartment. The device operates on 230 Volt, 50 Hertz and has a rated current range of 0.2 to 6.0 A. It is equipped with a 2-digit display that shows values and data, and it is selectable by model. The device is designed to operate in environments with a maximum ambient temperature of 45°C and offers protection code IP54, ensuring durability and reliability.

Technical specifications

Rated voltage: 230 Volt

Frequency: 50 Hertz

Rated current: 0.2 to 6.0 A

Maximum ambient temperature: 45°C

Protection code: IP54

Protection class: II

Mode of operation: Fully automatic control with 2 semiconductor temperature sensors

Maximum length of lead wire: 150 m

Usage

The TDA-Control T utilizes two separate semiconductor sensors to measure the temperature difference between the floor and ceiling. Based on the pre-set temperature difference (1-10°K), the device controls the fans' rotation speed between the minimum and maximum settings. If the temperature difference exceeds 3°C, the fans are activated. Users can also switch to manual adjustment mode (summer mode) for continuous speed control.

Other information

Models and maximum fan connections:

TDA-Control 1.5 T: 4 fans

TDA-Control 2.5 T: 7 fans

TDA-Control 5.0 T: 13 fans

TDA-Control 6: 15 fans

TDA-Control 6 E: 15 fans with digital display

Programming: All settings are captured and saved by a program, allowing for operational flexibility.

Features

Brand
CASAFAN
Power source
Corded
Integrated temperature sensor
Yes
Compatible with collective heating
Yes
Smart
No
Colour
White
Backlit display
Yes
IP rating
IP54
Material
Plastic
Programmable
Yes
Pcs per pack
1
Voltage
230 V
Control
Manual control
Thermostat type
Corded
ManoMano Reference
ME33205051
MMID
589735910855
Product code
983909
EAN
4024397347162
