TDA controller TDA-Control T IP54 various models

Product information

Description

General description

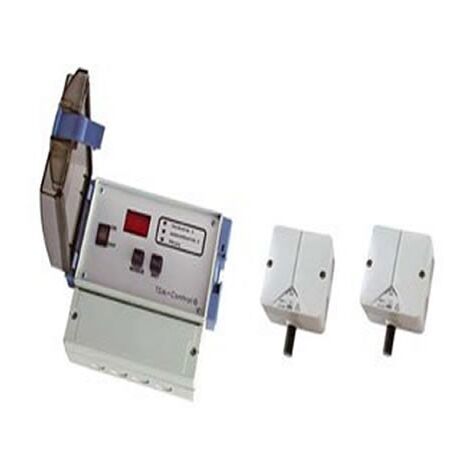

The TDA-Control T is an advanced temperature control device designed for industrial applications. It features a robust housing with a clear cover and lockable terminal compartment, ensuring durability and accessibility. The device operates on 230 Volt and 50 Hertz, with a rated current ranging from 0.2 to 6.0 A. It utilizes two separate semiconductor sensors to measure the temperature difference between the floor and ceiling, allowing for precise fan control based on user-defined parameters.

Technical specifications

Voltage: 230 Volt

Frequency: 50 Hertz

Rated current: 0.2 to 6.0 A

Protection code: IP54

Protection class: II

Maximum ambient temperature: 45°C

Maximum length of lead wire: 150 m

Temperature difference setting: 1-10°K

Compatibility and accessories

Model TDA-Control 1.5 T: Connects up to 4 fans

Model TDA-Control 2.5 T: Connects up to 7 fans

Model TDA-Control 5.0 T: Connects up to 13 fans

Model TDA-Control 6: Connects up to 15 fans

Model TDA-Control 6 E: Connects up to 15 fans, includes digital display

Installation

Installation involves connecting the device to the power supply and the fans, ensuring that the semiconductor sensors are positioned correctly to measure the temperature difference accurately.

Usage

The TDA-Control T allows for automatic fan control based on the temperature difference detected. If the temperature difference exceeds 3°C, the fans will activate. Users can also manually adjust the settings for continuous operation or switch to summer mode for manual control.

Other information

Features a 2-digit display for monitoring values and data

Programming capabilities to save settings

Can reduce operating costs through efficient temperature management

Features

Brand
CASAFAN
Power source
Corded
Integrated temperature sensor
Yes
Smart
No
Colour
White
IP rating
IP54
Material
Plastic
Programmable
Yes
Pcs per pack
1
Voltage
230 V
Control
Manual control
Compatible equipment type
Electric heating
Thermostat type
Corded
ManoMano Reference
ME33205055
MMID
383208206037
Product code
983910
EAN
4024397347179
