TDA controller TDA-Control T IP54 various models

Product information

Description

General description

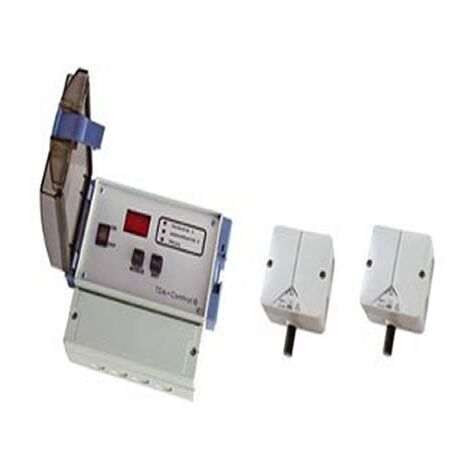

The TDA-Control T controller is designed for efficient temperature management in various environments. It features an industrial housing with a clear, lockable cover and an accessible terminal compartment. The device operates on 230 Volt and 50 Hertz, with a rated current ranging from 0.2 to 6.0 A. It includes a 2-digit display for easy monitoring of values and data, and is equipped with two separate semiconductor sensors to measure the temperature difference between the floor and ceiling.

Technical specifications

Voltage: 230 Volt

Frequency: 50 Hertz

Rated current: 0.2 to 6.0 A

Protection code: IP54

Protection class: II

Maximum ambient temperature: 45°C

Maximum length of lead wire: 150 m

Temperature difference setting: 1-10°K

Maximum number of fans connected:

TDA-Control 1.5 T: 4 fans

TDA-Control 2.5 T: 7 fans

TDA-Control 5.0 T: 13 fans

TDA-Control 6: 15 fans

TDA-Control 6 E: 15 fans (with digital display)

Usage

The TDA-Control T controller automatically adjusts fan speeds based on the temperature difference detected by the sensors. If the temperature difference exceeds 3°C, the fans are activated. The device allows for manual adjustment via a switch on the control panel, enabling a summer mode for continuous speed control. Users can also program the device to switch off the fans once the temperature difference decreases or maintain a predetermined RPM for minimum air change.

Other information

Interference-free operation

Decreased operating costs due to efficient temperature management

Features

Brand
CASAFAN
Voltage
230 V
Material
Thermoplastic
IP rating
IP54
Power source
Corded
