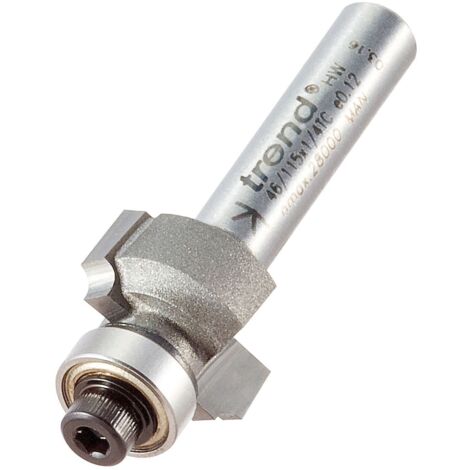

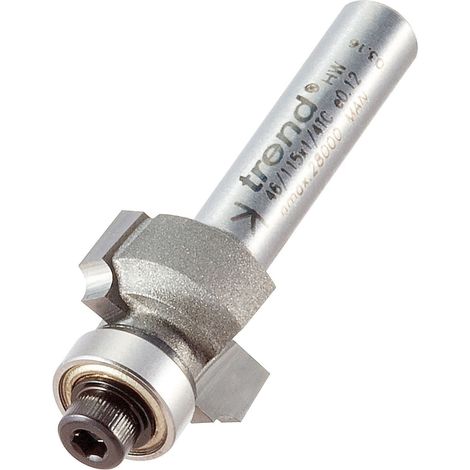

Trend 46/115X1/4TC Bearing-Guided Ovolo and Round-Over Router Bit with 1.6mm Radius, 1/4-Inch Shank, 15.9mm Diameter

Description

This bearing-guided ovolo and round-over cutter is designed for creating curved edges on various types of timber, including natural wood, particleboard, and fiberboard. It is ideal for edging window frames, glazing bars, cabinets, tabletops, shelves, and fire surrounds. The cutter can produce a rounded profile or bullnose edge, suitable for stair treads when used with a second pass from the opposite side. It features two bearings for different radius options and is manufactured from durable tungsten carbide for a professional finish and extended tool life.

Specifications

• Cutting diameter: 15.9mm
• Shank size: 1/4 inch
• Cutting length: 7.9mm
• Radius: 1.6mm
• Bearings: 9.5mm and 12.7mm diameter
• Material: Tungsten carbide tipped
• Product weight: approximately 1.0kg

Compatibility and Accessories

• Compatible with routers that accept 1/4 inch shank cutters
• Supplied with two bearings (9.5mm and 12.7mm diameter) for different profiles

Installation

• Insert the cutter into a compatible router with a 1/4 inch collet
• Securely tighten the collet to hold the cutter in place
• Adjust the height of the cutter to achieve the desired profile

Usage

• Use the larger bearing for a round-over profile
• Lower the cutter to produce a top quirk if needed
• For a full bullnose edge, make a second pass from the opposite side of the workpiece
• Ensure the workpiece is securely clamped before routing

Other Information

• Manufactured from high-quality tungsten carbide for durability and precision
• Designed for professional and DIY woodworking projects
