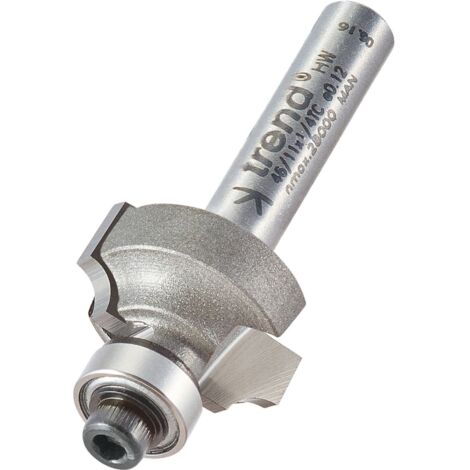

Trend 46/11X1/4 TCT Bearing-Guided Ovolo and Round-Over Cutter with 9.5mm Cutting Depth, 1/4" Shank, 19mm Diameter, and 3.2mm Radius

Description

This self-guiding ovolo cutter is designed for rounding over edges without the need for a side fence. It features a 3.2mm radius and a 19mm diameter, making it ideal for creating smooth, rounded edges on shelves, table tops, stair treads, and other woodworking projects. The cutter is supplied with two bearings, allowing you to choose the appropriate size for your desired finish. By lowering the cutter, you can produce a top quirk, and taking a second pass from the opposite side can create a full round or bullnose profile.

Specifications

• Cutting Diameter: 19mm
• Radius: 3.2mm
• Cutting Length: 9.5mm
• Shank Diameter: 1/4 inch
• Material: Tungsten Carbide
• Finish/Coating: Uncoated
• Type: Rounding Over Bits

Compatibility and Accessories

• Compatible with standard routers that accept 1/4 inch shank bits
• Supplied with two bearings for different radius finishes

Installation

• Insert the cutter into your router's collet and tighten securely.
• Choose the appropriate bearing for your desired radius and install it onto the cutter.
• Adjust the router's depth to achieve the required cut length of 9.5mm.

Usage

• Use the router with the bearing-guided cutter to smoothly round over edges.
• For a full bullnose or stair tread profile, make a second pass from the opposite side of the workpiece.
• Adjust the cutter height for different edge profiles or quirk effects.
