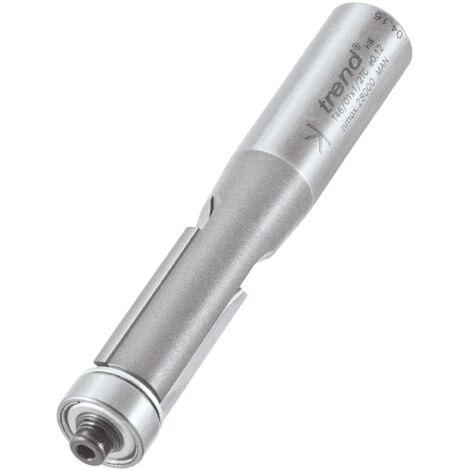

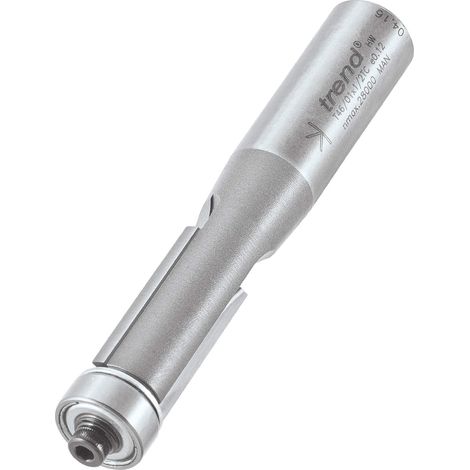

Trend T46/01X1/2TC TCT 90° Template Profiler Router Bit, 12.7 x 25mm
#1 in sales
Choose your model
Product
Price
Quantity
'/%3E%3C/svg%3E)
Buying for your business?
-5% on this product with negotiated prices
Sold by GravaHaus and 2 other sellers
You may also like
![[NEVER USED] Aluminium router table insert plate with 4 rings and screws for woodworking benches, 235 x 120 x 8 mm](https://cdn.manomano.com/pim-media/images/medium/ab62ef7d52b9569ab704f8ff4167c63af44109de.jpg)
Compare with similar items
Product information
Description
Description
- This product is a self-guiding router cutter with a tungsten carbide tip, designed for trimming, bevelling, and copy profiling of timber, plastic laminate, and plywood edges. It features a 1/2 inch shank and a 90° angle, making it suitable for both straight and curved work. The cutter is ideal for cabinet making, countertop production, and shaping applications. It allows precise edge trimming and profiling by following templates or base edges using its mounted bearing guide.
Specifications
- Type: Trimming and profiling cutter
- Material: Tungsten Carbide
- Shank diameter: 1/2 inch
- Cutting diameter: 12.7 mm (1/2 inch)
- Cutting length: 25 mm
- Overall length: approximately 82 mm
- Angle: 90°
- Finish: TCT (Tungsten Carbide Tipped)
Compatibility and Accessories
- Compatible with routers that accept 1/2 inch shank cutters
- Suitable for cutting plastic laminate, plywood, and timber
- Can be used with bearing guides for copy profiling and curved work
Installation
- Insert the cutter into a compatible router with a 1/2 inch collet
- Ensure the cutter is securely tightened before use
- Use with a bearing guide for precise trimming or profiling
Usage
- Use for trimming plastic laminate or plywood overlays
- Employ for copy profiling by following templates or edges
- Leave an approximate 3 mm overlap when copying or trimming to avoid surface scoring
- Allow laminate adhesive to dry before trimming to prevent guide clogging
Other Information
- Designed for both straight and curved work, suitable for various shaping applications
Features
- BrandTREND
- ColourMulticolour
- MaterialTungsten carbide
- Weight1000 g
- Spindle moulder accessory typeTilt mounting
- ManoMano ReferenceME1488261
- MMID610530894816
- Product codeTRET460112TC
- EAN5027654028056
'/%3E%3C/svg%3E)
You are here:
Related categories
Ochre curtains
Herringbone curtains
Curtains next
Patterned curtains
Deconovo curtains
Wide curtains
Linen curtains
Star curtains
Mesh curtains
Geometric curtains
Red curtains
Charcoal curtains
Unicorn curtains
Ring top curtains
Gaming curtains
Boho curtains
Trend C041A x 1/4 TCT Dovetail 104° 12.7 x 12.7mm TREC041A14TC
Trend Craft Dovetail Jig 300mm TRECDJ300
Trend 620/4WS Countersink TRE6204WS

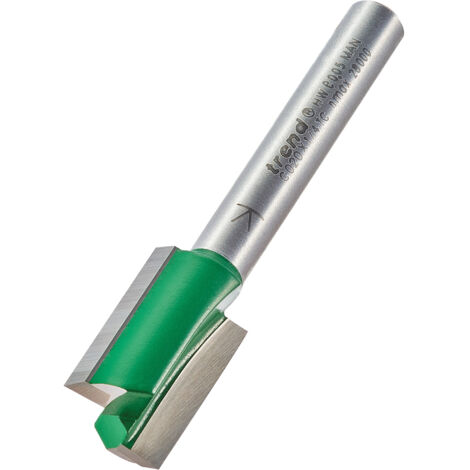

Trend C020 X 1/4 Tungsten Carbide Two Flute 12.7mm
