General description
Connection flange designed for the Vortice MPC inline fan range, facilitating the connection to ventilation pipes and ducts. The flange features a durable construction with a hammered grey finish, ensuring both functionality and aesthetic appeal.Technical specifications
- Housing material: Galvanised steel sheet with polyester coating
- Housing colour: Hammered grey
- Bayonet lock for secure connection

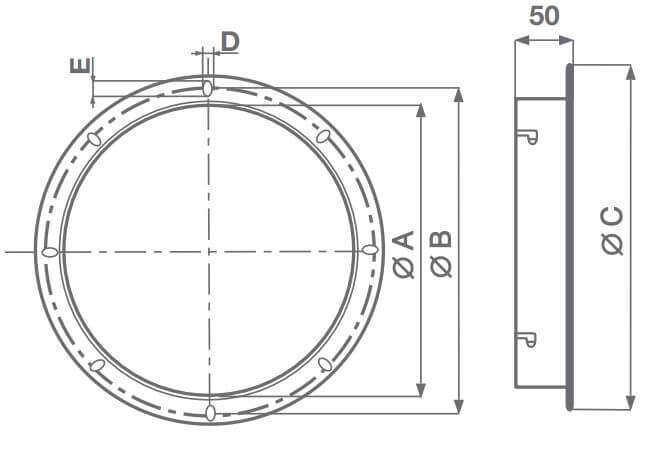

| Model | Fits | Ø A (mm) | Ø B (mm) | Ø C (mm) | DxE (mm) |
|---|---|---|---|---|---|
| MPC FL 250 | MPC 25/2 M, MPC 25/4 M, MPC 25/4 T | 260 | 292 | 318 | 9x14 |
| MPC FL 300 | MPC 30/2 M, MPC 30/2 T, MPC 30/4 M, MPC 30/4 T | 312 | 366 | 392 | 9x14 |
| MPC FL 350 | MPC 35/4 M, MPC 35/4 T | 364 | 405 | 431 | 9x14 |
| MPC FL 400 | MPC 40/4 M, MPC 40/4 T | 414 | 448 | 472 | 9x14 |
