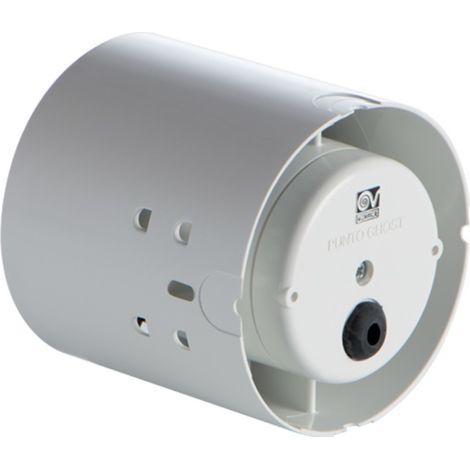

Axial Inline Fan Punto MG 120 LL

Product information

Description

General description

The Inline fan Punto MG 120 LL is designed for efficient air supply and extraction in various settings such as bathrooms, washrooms, and kitchens. With a maximum airflow rate of 160 m³/h, this fan ensures optimal ventilation while maintaining a low noise level.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Housing colour: white

Housing material: ABS plastic, non-yellowing, UV-resistant

Nominal size: 120 mm

Speed levels: 1

Wattage: 20 W

Current consumption: 0.12 A

Revolutions per minute: 2250

Airflow rate: 160 m³/h

Sound pressure level Lp-3m: 43 dB(A)

Total pressure Pmax.: 44 Pa

Max. temperature of transported air: +50°C

Diameter: 119 mm

Length: 103 mm

Weight: 0.6 kg

IP code: IPX4

Ball-bearing motor

Thermal overload protection

Compatibility and accessories

Integral non-return valve prevents cold air from infiltrating the system

Installation

Mounting options: any position

Usage

Suitable for air supply and air extraction depending on the mounting direction

Features

Brand
VORTICE
Colour
White
Shape
Cylindrical
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)

Customer reviews

4,6

/ 12 Reviews

Reviews verified by ManoMano

MManoMano Customer

Published on 07/05/2023, France

Compliant product, fast delivery, works very well Thank you

MManoMano Customer

Pro Customer

Published on 03/11/2021, Italy

I bought this fan for a small bathroom, to understand 1.35x2 meters height 3 meters. It was the most discreet on the market, the electrician mounted it without problems by connecting it to the light. When you turn off the light the fan will still go on for a couple of minutes. Perfect. I expected it to be quieter. I'm sorry that now I have to go in search of the grille cover. I would have preferred to find it in the box. . I recommend and buy it again.

2 people found this helpful

Cclaude

Published on 29/06/2021, France

Very quiet with an air flow that corresponds to what I wanted.

MManoMano Customer

Published on 27/09/2020, France

Excellent, allows you to customize the installation when you are in rigid pvc pipes for example. Only 1 installation direction, the phase inversion does not cause it to rotate in the opposite direction.

4 people found this helpful

MManoMano Customer

Published on 21/04/2020, France

Good product, a little noisy, I put a switch with regulation to only turn it on when necessary

AAlfredo

Published on 28/03/2020, Italy

Perfect product

Advice from

Bathroom extractor fan buying guide

Bathroom extractor fans renew stale air. The flow rate required to circulate the air is calculated using a formula based on the size of the bathroom. Air extractors, MEV systems, window or centrifugal extractor fans, read on for our tips on how to ventilate and banish humidity from the bathroom.

Read our guide
