General description

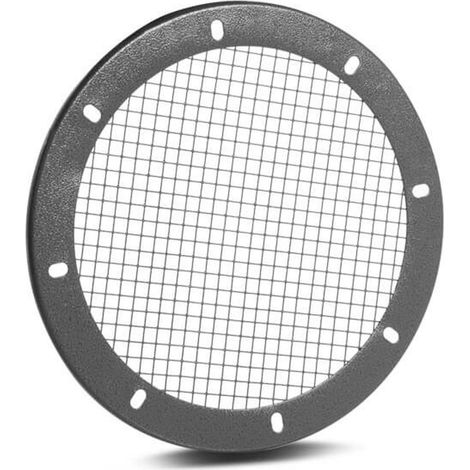

Vortice MPC RP Inline fan protective grille is designed to enhance safety and efficiency for the Vortice MPC inline fan range. It is essential for preventing accidental touch or suction of objects into the fan, especially when the intake or exhaust side is open.Technical specifications
- Protection grille for Vortice MPC inline fan range in accordance with DIN EN 294
- Housing colour: hammered grey
- Flange material: galvanised steel sheet with polyester coating
- Grille material: galvanised steel sheet
- Mounting options: intake side and exhaust side
| Model | Fits | Ø A (mm) | Ø B (mm) | C (mm) | DxE (mm) | Ø F (mm) |
|---|---|---|---|---|---|---|
| MPC RP 250 | MPC 25/2 M, MPC 25/4 M, MPC 25/4 T | 260 | 292 | 8 | 9x14 | 325 |
| MPC RP 300 | MPC 30/2 M, MPC 30/2 T, MPC 30/4 M, MPC 30/4 T | 312 | 366 | 8 | 9x14 | 399 |
| MPC RP 350 | MPC 35/4 M, MPC 35/4 T | 364 | 405 | 8 | 9x14 | 438 |
| MPC RP 400 | MPC 40/4 M, MPC 40/4 T | 414 | 448 | 8 | 9x14 | 481 |
