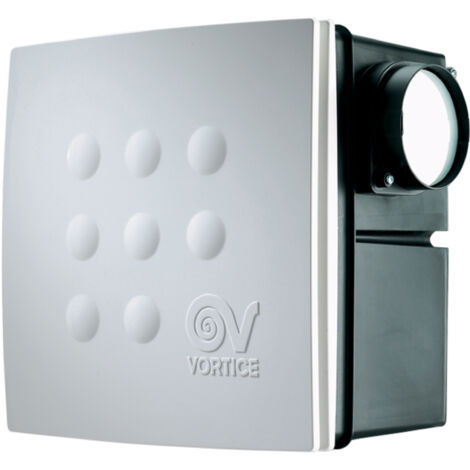

Centrifugal Duct Fan Quadro Medio I UP

Sold by creoven

Product information

Description

Dimensions and technical details

220-240 V ~ 50 Hz
Housing colour: white
Housing material: ABS plastic, non-yellowing, UV-resistant
Nominal diameter: 100 mm
Speed levels: 2
Wattage: 25 / 29 W
Current consumption: 0.14 / 0.18 A
Revolutions per minute: 1150 / 1890
Airflow rate: 70 / 122 m³/h
Total pressure Pmax: 206 / 331 Pa
Sound pressure Lp-3m: 35.9 / 41.2 dB(A)
Max. temperature for continuous operation: 50°C
IP code: IPX4
Insulation class: II
Diameter duct connector: 97 mm
Dimensions front cover: 287 x 287 x 37 mm
Total depth: 167 mm
Total depth with duct connector: 193 mm
Weight: 2.8 kg
Washable synthetic fibre fleece filter
Thermal overload protection
Self-lubricating bush bearings
Non-return valve prevents cold air from infiltrating once the fan is turned off
Mounting options: flush-mounted, any position
Exhaust nozzles on the side and back make it possible to connect a second room to the fan

Features

Brand
VORTICE
Colour
White
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)
Height
28.7 cm
Weight
2800 g
Depth
16.7 cm
Power
25 W
Noise level
41.2 dB
Pcs per pack
1
Type of lawn aerator
Classic
Type of installation method
Mortise mount
ManoMano Reference
ME10058611
MMID
538327432273
Product code
12020
EAN
8010300120201
