General description

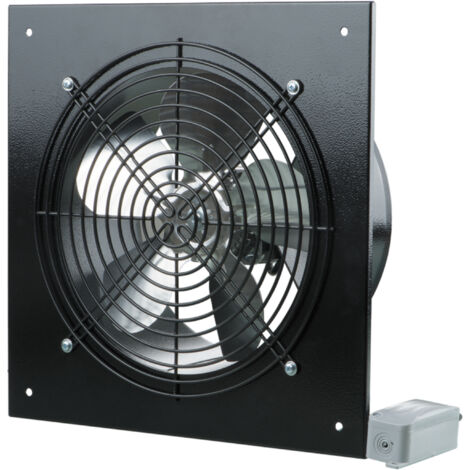

The Wall Fan OV1 200 is designed for efficient air supply or extraction, making it suitable for ventilation systems with low air resistance and a high demand for airflow. With a powerful airflow rate of up to 405 m³/h, this fan is ideal for various applications.Technical specifications
- Voltage: 230 V ~ 50 Hz
- Housing colour: black
- Housing material: powder-coated steel
- Nominal size: 200 mm
- Wattage: 43 W
- Current consumption: 0.28 A
- Revolutions per minute: 1300
- Airflow rate: 405 m³/h
- Sound pressure level Lp-3m: 33 dB(A)
- Max. temperature of transported air: -30 to +40°C
- IP code: IP24
- Weight: 3 kg
- Thermal overload protection
Other information
| Dimensions in mm | Ø D | Ø | B | B1 | L |
|---|---|---|---|---|---|
| OV1 200 | 208 | 7 | 312 | 260 | 120 |
