Weekly Programmable Time Switch, Relay Switch, with LCD Display, 16on and 8off Timer, THC15A 220V

~~£22.10~~

Of which environmental contribution £0.10 including VAT.

Sold by A10 ROOFING (LONDON) LIMITED

Product information

Description

General description

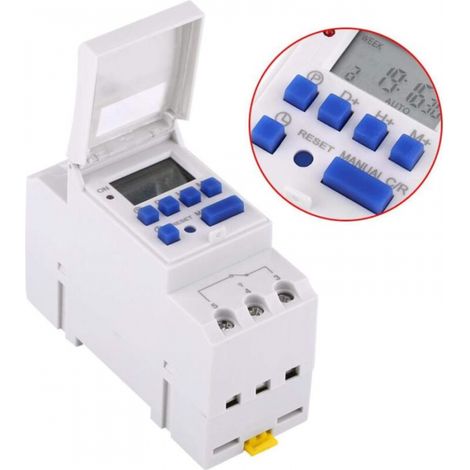

This Weekly Programmable Time Switch is an advanced digital electronic timer designed for general-purpose use. It features a programmable schedule that allows for 16 ON and 16 OFF settings, enabling precise control over various electrical devices. The built-in LCD display provides real-time information on hours, minutes, and operational modes (ON/AUTO/OFF).

Technical specifications

Input voltage: AC/DC12V, AC/DC24V, AC110V (optional)

Contact rated voltage: AC 180V to 264V (50/60Hz)

Load Capacity: 16A 250VAC (Resistive Load)

On/Off Operation: 16 ON and 16 OFF (Manual/Auto)

Display: LCD

Power: 4.5VA (Maximum)

Error: ≤2s/day (25℃)

Operating Temperature: -10℃ to 55℃

Size: 86 x 36 x 65mm / 3.38 x 1.41 x 2.56"

Installation

DIN rail installation (DIN rail not included)

Usage

Automatically turns on/off electrical equipment based on user-set times

Ideal for controlling street lights, neon lights, production equipment, and household appliances

First-time use requires charging the built-in battery and pressing the reset button

Default mode is 24-hour; can switch to 12-hour mode by holding the "time" button for 5 seconds

Other information

Package includes: 1 x Timer, 1 x English Manual

Features

Brand
CYSLMUK
Voltage
12 V
Certification body
DIN
Power source
Corded
Height
65 mm
Amperage
16 A
Width
36 mm
Material
Plastic
Type of electrical installation
DIN rail
Programming frequency
Weekly
Weight
150 g
Depth
86 mm
Power
4.5 W
Display type
Digital thermometer
Contact type
Normally open
ManoMano Reference
ME88852487
MMID
720206058923
Product code
PB-001238ZY
EAN
9010050181353
