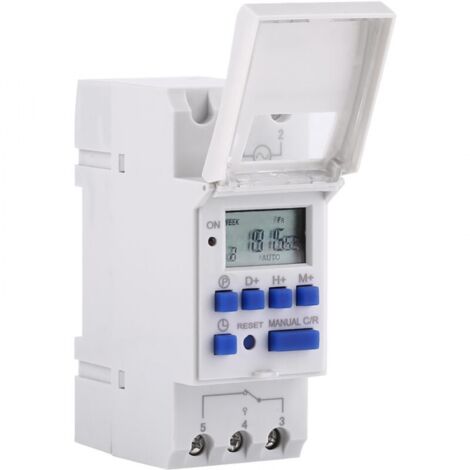

Weekly Programmable Time Switch, Relay Switch, with LCD Display, 16on and 8off Timer, THC15A 12V

£22.10
Of which environmental contribution £0.10 including VAT.

You may also like

Compare with similar items

Product information

Description

General description

This Weekly Programmable Time Switch is an advanced digital electronic timer designed for general purposes. It features a user-friendly LCD display and allows for precise control of electrical equipment with 16 ON and 16 OFF settings. The timer can be programmed for daily and weekly use, making it ideal for various applications such as street lights, neon lights, production equipment, and household appliances.

Technical specifications

  • Input voltage: AC/DC12V, AC/DC24V, AC110V (optional)
  • Contact rated voltage: AC 180V to 264V (50/60Hz)
  • Load Capacity: 16A 250VAC (Resistive Load)
  • On/Off Operation: 16 ON and 16 OFF (Manual/Auto)
  • Display: LCD
  • Power: 4.5VA (Maximum)
  • Error: ≤2s/day (25℃)
  • Operating Temperature: -10℃ to 55℃
  • Size: 86 x 36 x 65mm / 3.38 x 1.41 x 2.56"
  • Installation

  • DIN rail installation (DIN rail not included)
  • Usage

  • To use the timer for the first time, connect to AC power and charge the built-in battery, then press the reset button.
  • The timer operates in 24-hour mode by default; press and hold the "time" button for 5 seconds to switch to 12-hour mode.
  • Press and hold the "time" button again for 5 seconds to return to 24-hour mode.
  • Other information

  • Package includes: 1 x Timer, 1 x English Manual
  • Built-in 1.2V/40mA rechargeable battery
  • Industrial-grade chip for high precision and strong anti-interference ability
  • Features

    • Brand
      CYSLMUK
    • Width
      36 mm
    • Height
      65 mm
    • Depth
      86 mm
    • Weight
      150 g
