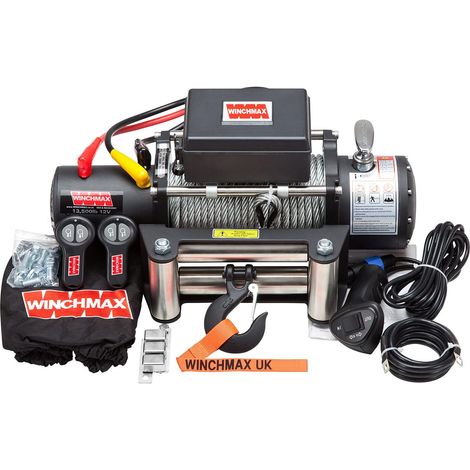

13,500lb (6,123kg) 12v Military Grade Winch. 26m x 9.5mm Steel Rope, Twin Wireless Remote Controls.

General description

The 13,500lb (6,123kg) Military Grade 12V Winch is designed for recovery trucks and 4x4 vehicles up to 3.5T. This powerful winch features a robust construction with advanced anti-corrosion measures, making it suitable for demanding environments.

Technical specifications

• Single Line Rated Pull: 13,500lb (6,123kg)
• Motor: 12V 6.8hp/5.1kw, series wound
• Gear Train: 3 stage planetary
• Gear Reduction Ratio: 265:1
• Clutch: Sliding ring gear
• Braking Action: Automatic in the drum
• Drum Size: Diameter 64mm (2.52”), length 224mm (8.82”)
• Drum Finish: Galvanized
• Cable: 26m x 9.5mm galvanized steel wire rope
• Hook: Clevis hook 3/8 inch, black
• Fairlead: 4-Way roller fairlead
• Battery Leads: 2 gauge, 1.83m (72”) 35mmsq - 6.5mm diameter
• Recommended Battery: 650CCA minimum for winching
• Winch Finish: Matt black (low light paint)
• Weight (GW): 40kg (88lb)
• Overall Dimensions (LxWxH): 536 x 160 x 218mm (21.3” x 6.3” x 8.6”)
• Mounting Bolt Pattern: 10.00” ± 0.015” x 4.50” ± 0.010” (254 x 114.3mm)
• Motor Current: 65-400A
• No Load Line Speed: 6.5m/min (21.3 ft/min)

Other information

• Features twin wireless remote controls for convenient operation.
• Heavy-duty one-piece solenoid, ultra-reliable, IP67 waterproof.
• Includes a strong WINCHMAX branded cover for protection against water and road grime.
• Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical components.
•
