General description

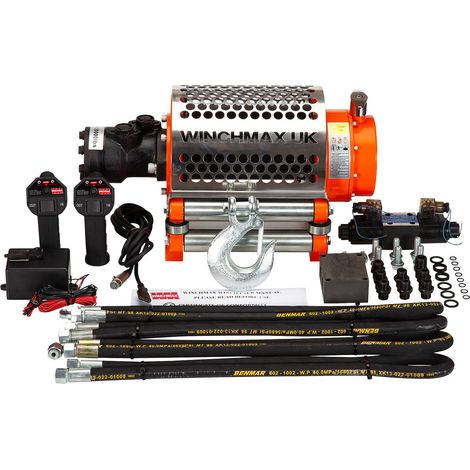

The 20,000lb (9,072kg) Original Orange Z Hydraulic Winch is designed for heavy-duty applications, making it ideal for recovery trucks, trailers over 7.5T, and various industrial, commercial, and agricultural uses. This winch features a robust 24V control system and comes equipped with a 25m x 14mm galvanized steel wire rope, ensuring reliable performance in demanding conditions.Technical specifications
- Single line rated pull: 20,000lb (9,072kg)
- Motor: Hydraulic
- Gear train: 3 Stage Planetary
- Gear reduction ratio: 32:1
- Clutch: Sliding Ring Gear
- Braking Action: Automatic
- Drum size: Diameter 88mm, Length 222mm
- Cable: 25m x 14mm diameter
- Hook: Clevis hook 1/2 inch, zinc-plated
- Fairlead: 4-Way Roller Fairlead
- Flow: 50-60 L/min
- Pressure: 10.8Mpa (108 Bar)
- Finish: Orange & Black
- Weight (GW): 70kg (154lb)
- Overall Dimensions: 548 x 196 x 249mm (LxWxH)
- Mounting Bolt Pattern: 10.00” x 4.50” (254 x 114.3mm)
- Pressure Hose Connections: 18mm/1.5mm
- No Load Line Speed: 6.5m/min (21.3 ft/min)
Compatibility and accessories
- Includes full 24V wired/wireless control system, pipes, and connectors
- Socket and wiring harness for wander lead connection (wireless back-up)
- Heavy-duty 4-way roller fairlead integrated to frame, no additional mounting plate required
- Hydraulic hose assemblies 1.25m long (x4) fitted with 18 x 1.5mm threaded fittings
- High tensile fixing bolt kit
Installation
- Easy installation with integrated mounting options
- Requires standard tools for setup
Usage
- Ideal for heavy-duty recovery operations
- Suitable for industrial, commercial, and agricultural applications
- Can be operated using wired or wireless remote controls
Other information
Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical. VAT invoice provided with every sale.
