General description

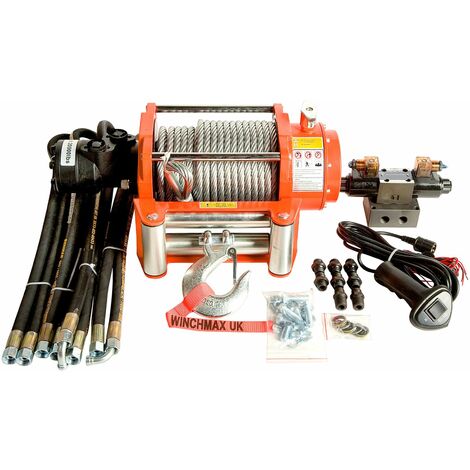

The 20,000lb (9,072kg) Original Orange Hydraulic Winch is designed for heavy-duty applications, making it ideal for recovery trucks, trailers over 7.5T, as well as industrial, commercial, and agricultural use. This winch features a robust 24V control system and comes equipped with a full 12V wired/wireless control system, pipes, and connectors.Technical specifications
- Single Line Rated Pull: 20,000lb (9,072kg)
- Motor: Hydraulic
- Control: Remote switch with 4.5m lead
- Gear Train: 3 Stage Planetary
- Gear Reduction Ratio: 32:1
- Clutch: Sliding Ring Gear
- Braking Action: Automatic
- Drum Size: Diameter 88mm, Length 222mm
- Drum Finish: Black, painted
- Cable: 25m x 14mm galvanized steel wire rope
- Hook: Clevis hook 1/2 inch, zinc plated
- Fairlead: 4-Way roller fairlead
- Flow: 50-60 l/min
- Pressure: 10.8Mpa (108 Bar)
- Pressure Hose Connections: 18mm/1.5mm
- Winch Finish: Original Orange powder coated
- Weight (GW): 65kg (143lb)
- Overall Dimensions (LxWxH): 548 x 196 x 249mm
- Mounting Bolt Pattern: 10.00” ± 0.015” x 4.50” ± 0.010” (254 x 114.3mm)
- No Load Line Speed: 6.5m/min (21.3 ft/min)
Compatibility and accessories
- Compatible with the full WINCHMAX range of wireless remote controls.
- Includes hydraulic hose assemblies (1.25m long x4) fitted with 18 x 1.5mm threaded fittings.
- Power in/out big grip wander lead with extra-long (4.5m) cord.
- Wander lead wiring harness and socket for connection to the solenoid valve.
- High tensile fixing bolt kit included.
Installation
Installation requires following the provided instructions for mounting and connecting the hydraulic hoses and electrical components. Ensure that the winch is securely mounted and that all connections are tight to prevent leaks or failures during operation.Usage
This hydraulic winch is designed for heavy lifting and recovery tasks. It is suitable for use in various applications, including towing, lifting, and pulling heavy loads in industrial and agricultural settings. Always follow safety guidelines and ensure proper operation to maximize efficiency and safety.Other information
Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical components.'/%3E%3C/svg%3E)
