General description
The 20,000lb (9,072kg) Original Orange Hydraulic Winch is designed for heavy-duty applications, making it ideal for recovery trucks, trailers over 7.5T, as well as industrial, commercial, and agricultural use. This winch features a robust construction and a full control system for efficient operation.
Technical specifications
- Single Line Rated Pull: 20,000lb (9,072kg)
- Motor: Hydraulic
- Control: Remote switch, 4.5m lead, in and out
- Gear Train: 3 Stage Planetary
- Gear Reduction Ratio: 32:1
- Clutch: Sliding Ring Gear
- Braking Action: Automatic
- Drum Size: Diameter 88mm, Length 222mm
- Drum Finish: Black, painted
- Cable: 25m x 14mm galvanized steel wire rope
- Hook: Clevis hook 1/2 inch, zinc plated
- Fairlead: 4-Way roller fairlead
- Flow: 50-60 l/min
- Pressure: 10.8Mpa (108 Bar)
- Pressure Hose Connections: 18mm/1.5mm
- Winch Finish: Original Orange powder coated
- Weight (GW): 65kg (143lb)
- Overall Dimensions (LxWxH): 548 x 196 x 249mm
- Mounting Bolt Pattern: 10.00” ± 0.015” x 4.50” ± 0.010” (254 x 114.3mm)
- No Load Line Speed: 6.5m/min (21.3 ft/min)

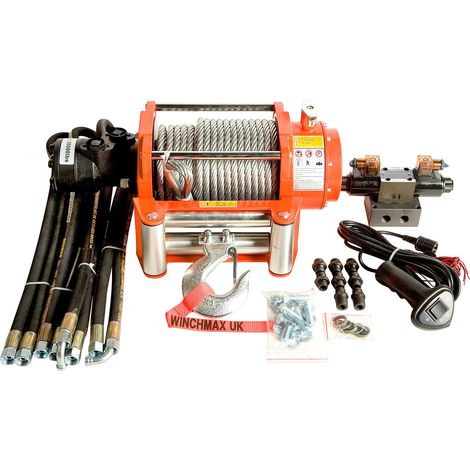

Compatibility and accessories
- Compatible with the full WINCHMAX range of wireless remote controls.
- Includes full 12V wired/wireless control system, pipes, and connectors.
- Hydraulic hose assemblies 1.25m long (x4) fitted with 18 x 1.5mm threaded fittings.
- Power in/out big grip wander lead with extra-long (4.5m) cord.
- Wander lead wiring harness and socket for connection to the solenoid valve.
- High tensile fixing bolt kit.
Installation
Installation requires following the provided instructions for mounting and connecting the hydraulic system. Ensure that the mounting bolt pattern is compatible with your vehicle or application.
Usage
This hydraulic winch is designed for heavy lifting and recovery tasks. It can be operated using the remote control for convenience and safety. Ensure proper setup and maintenance for optimal performance.
Other information
Industry-leading lifetime warranty on mechanical components and 3 years warranty on electrical components. VAT invoice provided with every sale.
