General description
The 20,000lb (9,072kg) Original Orange Z Hydraulic Winch is designed for heavy-duty applications, making it ideal for recovery trucks, trailers over 7.5T, and various industrial, commercial, and agricultural uses. This winch features a robust 12V control system and comes equipped with a 25m x 14mm galvanized steel wire rope and a 1/2 inch clevis hook.Technical specifications
- Single line rated pull: 20,000lb (9,072kg)
- Motor: Hydraulic
- Gear train: 3 Stage Planetary
- Gear reduction ratio: 32:1
- Clutch: Sliding Ring Gear
- Braking Action: Automatic
- Drum size: Diameter 88mm, Length 222mm
- Cable: 25m x 14mm diameter
- Hook: Clevis hook 1/2 inch, zinc plated
- Fairlead: 4-Way Roller Fairlead
- Flow: 50-60 L/min
- Pressure: 10.8Mpa (108 Bar)
- Finish: Orange & Black
- Weight (GW): 70kg (154lb)
- Overall Dimensions: 548 x 196 x 249mm (LxWxH)
- Mounting Bolt Pattern: 10.00” x 4.50” (254 x 114.3mm)
- Pressure Hose Connections: 18mm/1.5mm
- No Load Line Speed: 6.5m/min (21.3 ft/min)
Usage
This hydraulic winch is suitable for a variety of applications, including vehicle recovery, lifting heavy loads, and assisting in agricultural tasks. Its powerful pulling capacity and durable construction make it a reliable choice for demanding environments.Other information

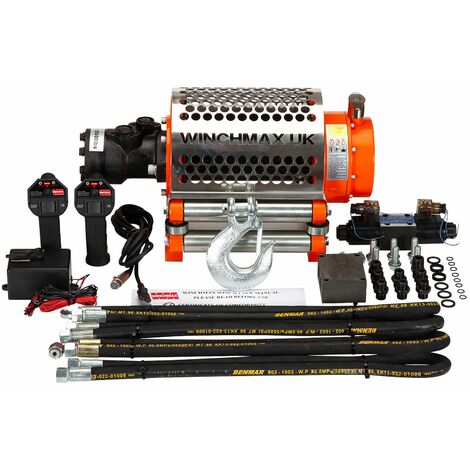

- Includes full 12V wired/wireless control system, pipes, and connectors.
- Industry-leading lifetime warranty on mechanical components and 3 years warranty on electrical components.
- VAT invoice provided with every sale.
