General description
The 5,000lb (2,268kg) Original Orange 12V Electric Winch is designed for heavy-duty applications, making it ideal for use on boat trailers, ATVs, and light utility vehicles. It features a durable Dyneema rope and comes with twin wireless remote controls for convenient operation.Technical specifications
- Single Line Rated Pull: 5,000lb (2,268kg)
- Motor: 12V 1.5hp Permanent Magnetic Motor
- Control: Twin Wireless Remote in/out Plus Handlebar-Mounted Rocker Switch
- Gear Train: 3 Stage Planetary
- Gear Reduction Ratio: 166:1
- Clutch: Cam Activated Free Spool
- Braking Action: Automatic Full Load Hold
- Drum Finish: Steel – Painted Black
- Cable: 15.5m x 5mm Dyneema SK75 Synthetic Rope
- Hook: Clevis Hook 1/4 Inch, Zinc plated
- Fairlead: One-piece Billet Aluminium Hawse Fairlead
- Battery: Recommended 12Ah Minimum for Winching
- Battery Leads (x2): 10mm2 x 180cm
- Motor Leads (x2): 10mm2 x 90cm
- Winch Finish: Original Orange powder-coated
- Weight (GW): 13.6kg (29.9lb)

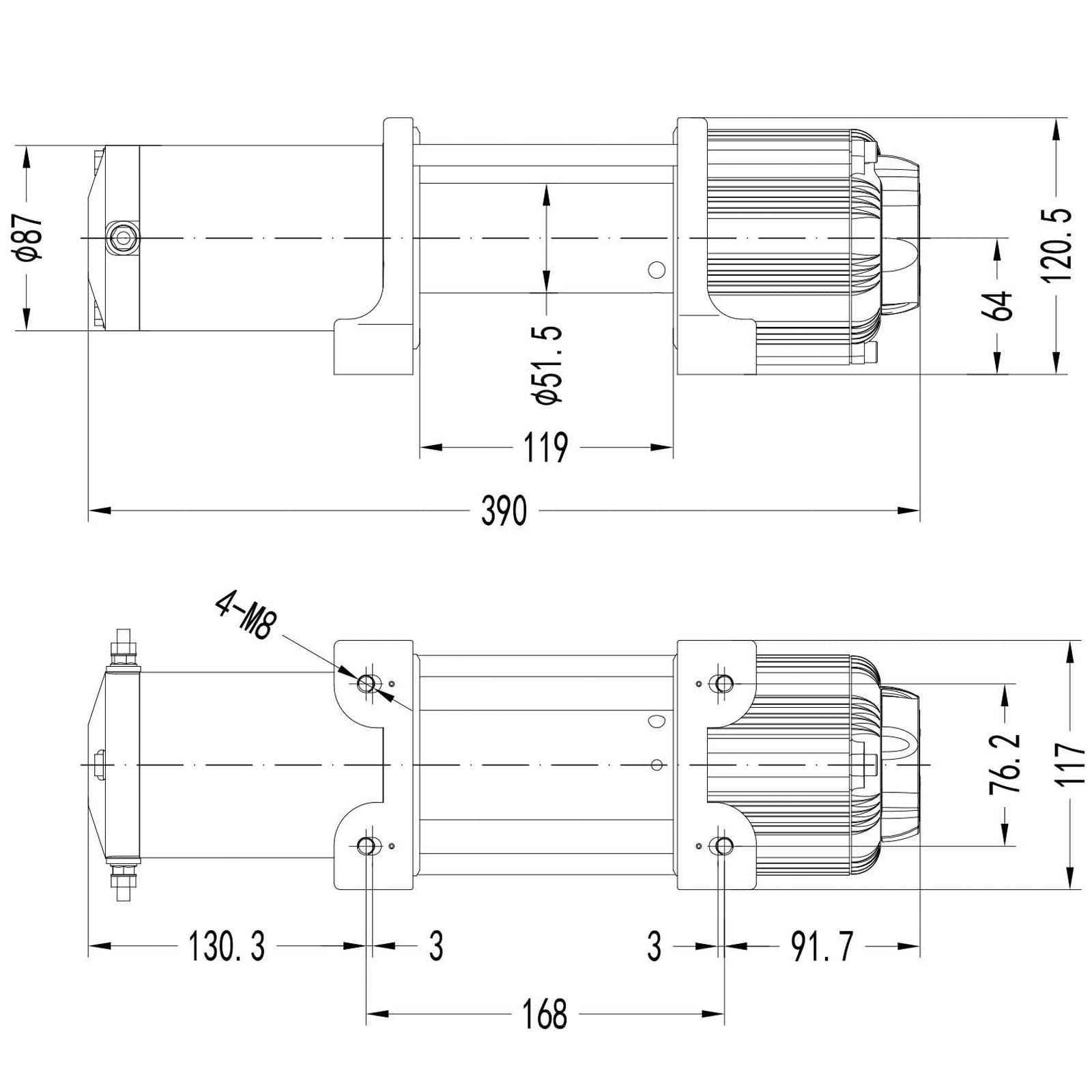

- Overall Dimensions: 390 x 120 x 117mm (LxWxH)
- Motor Current: 15-296A
- No Load Line Speed: 6.1m/min (20.0ft/min)
Other information
- Includes mounting plate
- Safety catch and hand saver, zinc plated
- Heavy-duty one-piece solenoid, ultra-reliable, IP67 waterproof
- Freewheel clutch
- High tensile fixing bolt kit
- 2x 180cm battery power cables, 2x 90cm motor power cables
- Strong WINCHMAX branded cover to protect from water and road grime
- Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical
