General description

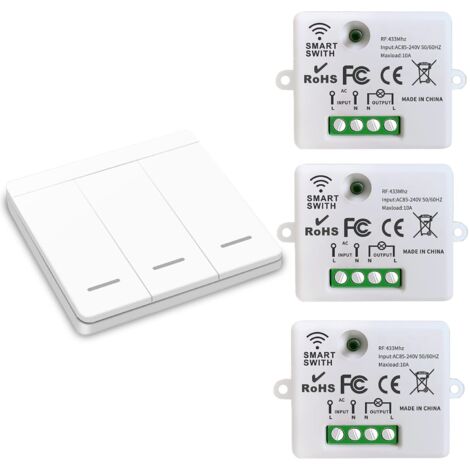

The Wireless Light Switch is a 433 MHz RF transmitter safety switch designed for easy installation and operation of lamps up to 1500W. It features a reliable performance with high sensitivity reception, allowing control from a distance of up to 50 meters in open spaces. The switch can be attached to any device using double-sided tape or screws, making it versatile for various applications.Technical specifications
- Operating voltage: AC 85V ~ 250V
- Maximum current: 10A
- RF frequency: 433 MHz
- Encoding support: learning code 1527
- Sensitivity reception: > 97 dBm
- Operating temperature: -30 ~ +80 ℃
- Reception range: approximately more than 20 meters indoors
- Standing current: < 5 mA
- Relay receiver size: 47 * 42 * 23 mm
- Wireless switch size: 86 * 86 * 13 mm
Installation
The receiver is compact and can be easily installed between the power supply and the device. It can fit into most electrical enclosures or junction boxes, or be secured with screws on a board. No wiring is required for installation, simplifying the setup process.Usage
The wireless switch allows you to control devices from anywhere within the specified range. Each receiver can store about 10 wireless switches, enabling multiple users to operate the same device. The switch can be easily configured and reset, allowing for additional switches to be added as needed.Other information
How to program
- Press the learning button on the receiver twice and wait 3 seconds.
- Press any button on the wireless switch to complete the programming.
Reset
Press the learning button on the receiver eight times to reset. Note: After reset, all wireless switches will no longer control this receiver.
