General description

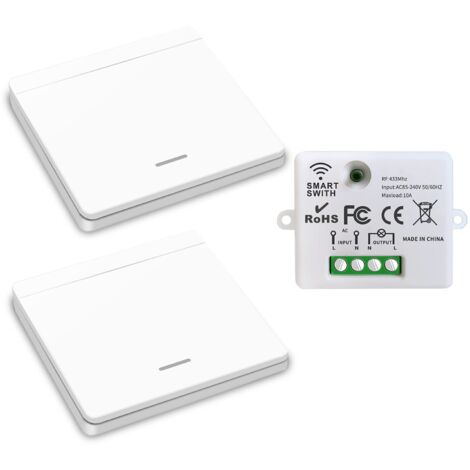

The Wireless Light Switch is a versatile RF transmitter safety switch designed for easy installation and operation. It allows you to control lamps and other devices up to 1500W without the need for wiring between the switch and the light. With a powerful 433 MHz RF signal, it offers stable and reliable performance, capable of passing through walls and other obstacles, ensuring control from a distance of up to 50 meters in open spaces.Technical specifications
- Operating voltage: AC 85V ~ 250V
- Maximum current: 10A
- RF frequency: 433 MHz
- Encoding support: learning code 1527
- Sensitivity reception: > 97dBm
- Operating temperature: -30 ~ +80 ℃
- Reception range: approximately more than 20 meters indoors
- Standing current: < 5 mA
- Relay receiver size: 47 * 42 * 23 mm
- Wireless switch size: 86 * 86 * 13 mm
Installation
The installation process is straightforward and does not require any wiring. The receiver can be easily hidden and fits into most electrical enclosures or junction boxes. It can be attached using screws or double-sided tape. The wireless switch can be placed anywhere according to your needs.Usage
The wireless switch allows you to turn devices on or off from anywhere within the specified range. Each receiver can store up to 10 wireless switches, enabling multiple users to control the same device. The system is designed for easy configuration and can be reset as needed.Other information
