General description
The Wireless Light Switch is a 433MHz RF transmitter designed for easy installation and operation of lamps up to 1500W. It eliminates the need for wiring between the lights and the switch, allowing for stable and reliable performance with high receiving sensitivity (> -97dBm). The strong radio frequency signal can penetrate walls, floors, and doors, enabling remote control from a distance of less than 50 meters in open spaces.Technical specifications
- Operating Voltage: AC 85V ~ 250V
- Maximum Current: 10A

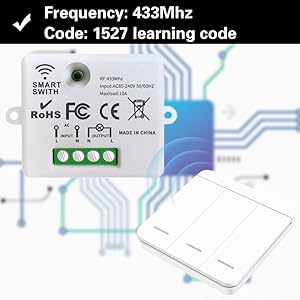

- RF Frequency: 433MHz
- Encoding Support: Learning Code 1527
- Receiving Sensitivity: > 97dBm
- Operating Temperature: -30 ~ +80 ℃
- Receiving Range: More than 20 meters indoors
- Quiescent Current: < 5mA
- Relay Receiver Size: 47 * 42 * 23 mm
- Wireless Switch Size: 86 * 86 * 13 mm
Installation

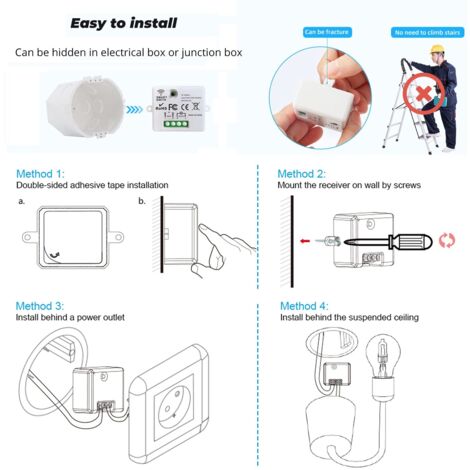

The installation process is straightforward as no wiring is required. The mini receiver can be easily hidden and installed between the power supply and the device. It can be mounted in most electrical boxes or junction boxes, or secured with screws on a board.Usage

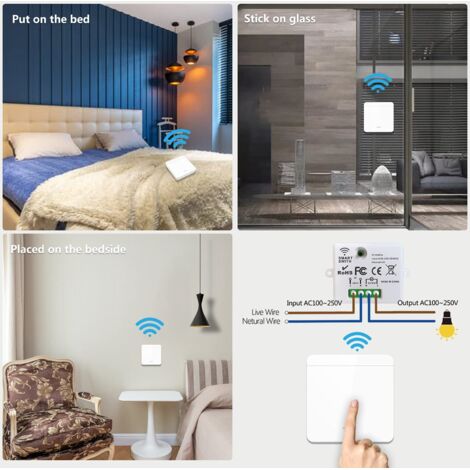

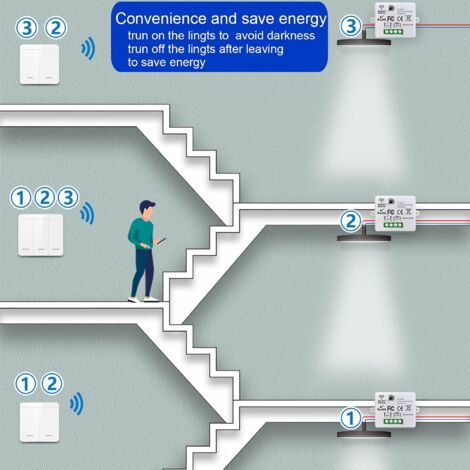

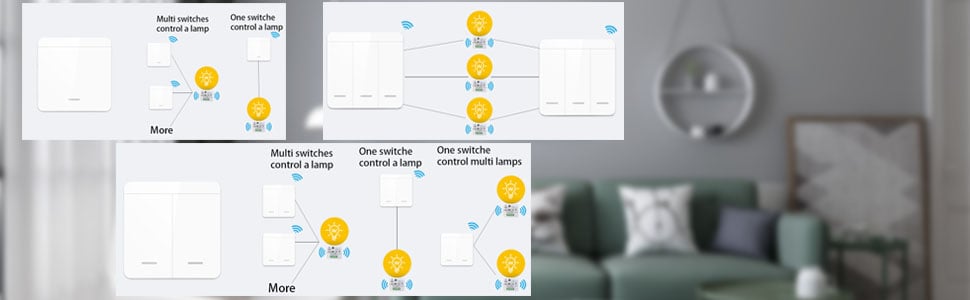

The wireless switch can be attached using double-sided tape or screws, allowing you to control devices from anywhere. Each receiver can store about 10 wireless switches, enabling multiple users to control the same device. The system is flexible, allowing for easy addition of more wireless switches as needed.Other information
