General description

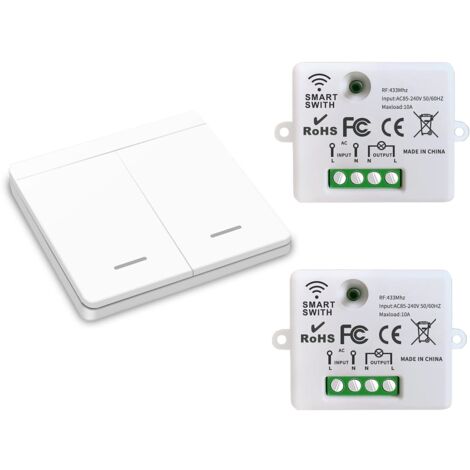

The Wireless Light Switch is a 433 MHz RF transmitter safety switch designed for easy installation and operation. It allows you to control lamps and other devices up to 1500W without the need for wiring between the switch and the light. With a stable and reliable performance, it can transmit signals through walls and other obstacles, providing control from a distance of up to 50 meters in open spaces.Technical specifications
- Operating voltage: AC 85 V ~ 250 V
- Maximum current: 10A
- RF frequency: 433 MHz
- Encoding support: learning code 1527
- Sensitivity reception: > 97 dBm
- Operating temperature: -30 ~ +80 ℃
- Reception range: approximately more than 20 meters indoors
- Standing current: < 5 mA
- Relay receiver size: 47 * 42 * 23 mm
- Wireless switch size: 86 * 86 * 13 mm
Installation
The installation process is straightforward and does not require any wiring. The receiver can be easily hidden and fits into most electrical enclosures or junction boxes. It can be attached using screws or double-sided tape. The wireless switch can be placed anywhere according to your needs.Usage
The wireless switch allows you to turn devices on and off from anywhere within the specified range. Each receiver can store up to 10 wireless switches, enabling multiple users to control the same device. You can also control multiple receivers with a single transmitter, making it versatile for various applications.Other information
How to program
- Press the learning button on the receiver twice and wait 3 seconds.
- Press any button on the wireless switch to complete the programming.
Reset
To reset, press the learning button on the receiver eight times. Note that after resetting, all wireless switches will no longer control this receiver.
