0.5 Ton X 6 Metre Screw Type Gear Trolley - Travel Girder Adjuster

Name: 0.5 Ton X 6 Metre Screw Type Gear Trolley - Travel Girder Adjuster
Brand: SECUREFIX DIRECT
SKU: SFSTGT0.5
Price: 80 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

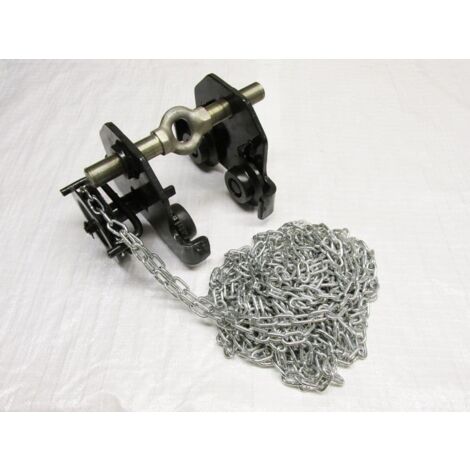

These 0.5 ton x 6 metre screw type geared trolleys are designed to be attached to steel beams, providing an adjustable lifting point for chain blocks, hoists, and various lifting tackle. They feature a hand chain and gear combination that allows for easy and precise movement. The screw type adjuster enables efficient adjustment to fit different beam sizes as required.

Technical specifications

Product Code: SFSTGT0.5

Safe Working Load (S.W.L): 0.5 Ton

Beam Size Range: 50-220 mm

Length: 225 mm

Width: 365 mm

Height: 155 mm

Hand Chain Length: 5.8 m

Lifting Height: 6 m

Other information

Supplied with Test Certificate (sent via email)

Conforms to: BS EN 13157: 2004+A1: 2009

Features

Brand
SECUREFIX DIRECT
Warranty
1 year(s)
Maximum load
500 kg
Height
15.5 cm
Material
Two-material

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
